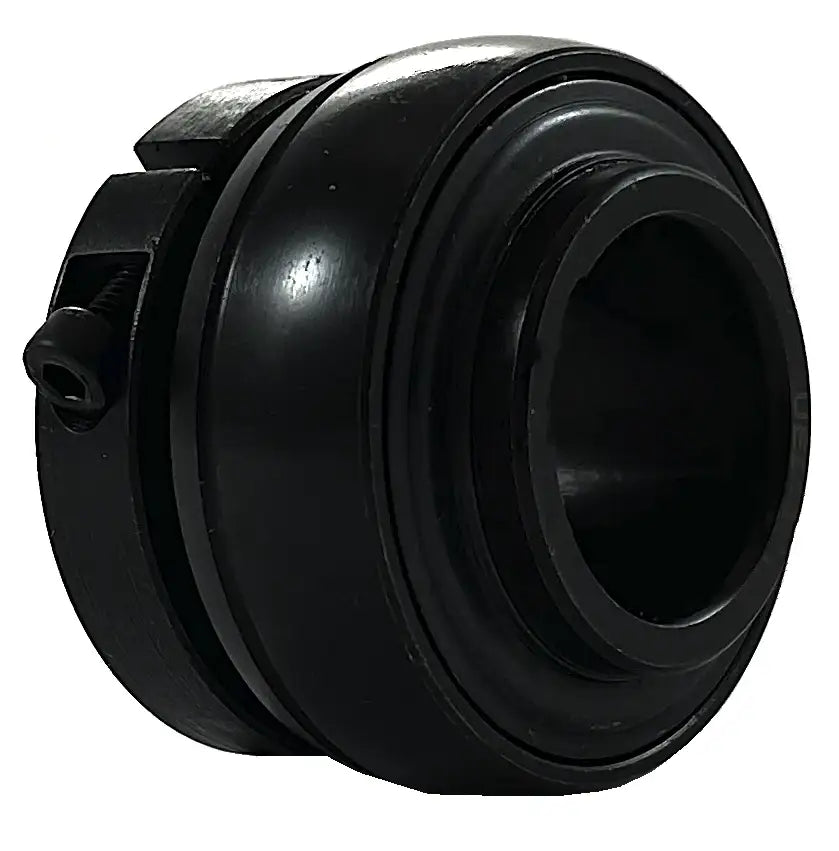

UE206-18 Bearing | 1-1/8" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-206-18-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE206-18 Bearing | 1-1/8" Insert Bearing Features
UE206-18 Bearing | 1-1/8" Insert Bearing Specifications
UE206-18 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 1-1/8" shaft. Our UE206-18 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE206-18 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE206-18 bearings, contact our customer service and, we will be happy to assist you!
UE206-18 Bearing Dimensions
- Part #: UE 206-18
- Shaft Diameter (d): 1-1/8"
- Setscrew Used: 1/4-28
- Dimension (D): 2.4409"
- Dimension (Bi): 1.5669"
- Dimension (Be): 0.7480"
- Dimension (N): 0.6260"
- Dimension (M): 0.8740"
- Dimension (W): 2.185"
- Dimension (K): 0.374"
- Dimension (T): 0.2087"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Weight (LBS): 0.7
- Part #: UE 206-18
- Shaft Diameter (d): 1-1/8"
- Setscrew Used: 1/4-28
- Dimension (D): 2.4409"
- Dimension (Bi): 1.5669"
- Dimension (Be): 0.7480"
- Dimension (N): 0.6260"
- Dimension (M): 0.8740"
- Dimension (W): 2.185"
- Dimension (K): 0.374"
- Dimension (T): 0.2087"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Weight (LBS): 0.7
