UE206 Bearing | 30mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-206-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE206 Bearing | 30mm Insert Bearing Features
UE206 Bearing | 30mm Insert Bearing Specifications

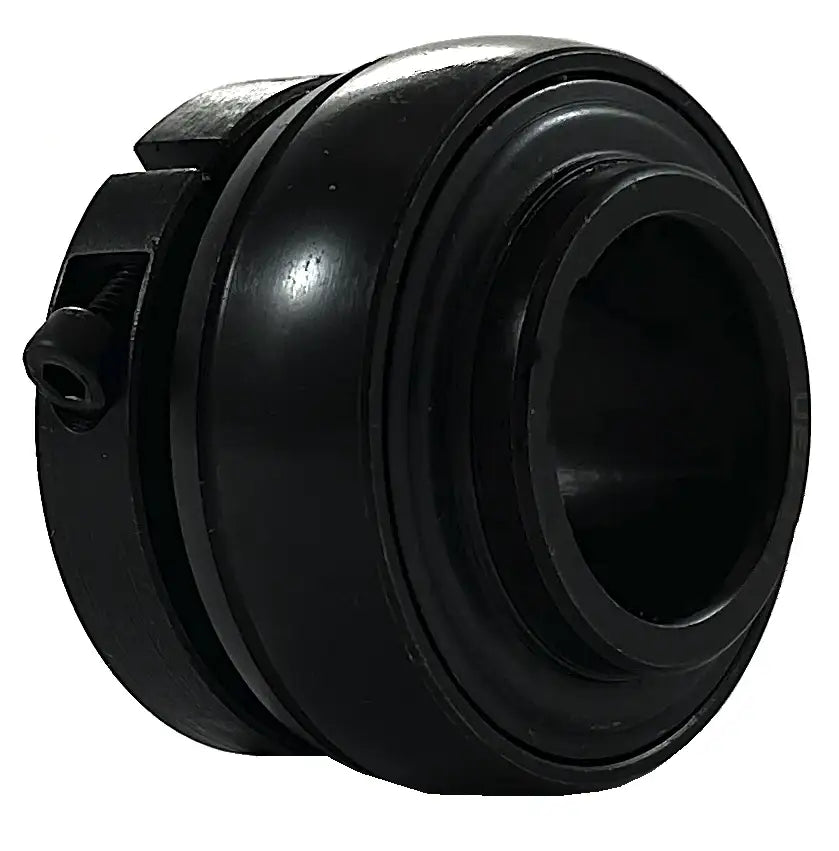

UE206 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 30mm shaft. Our UE206 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE206 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE206 bearings, contact our customer service and, we will be happy to assist you!
UE206 Bearing Dimensions
- Part #: UE 206
- Shaft Diameter (d): 30mm
- Setscrew Used: M4 x 0.7
- Dimension (D): 62.0mm
- Dimension (Bi): 39.8mm
- Dimension (Be): 19.0mm
- Dimension (N): 15.9mm
- Dimension (M): 22.2mm
- Dimension (W): 55.5mm
- Dimension (K): 9.5mm
- Dimension (T): 5.3mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Weight (kN): 0.3
- Part #: UE 206
- Shaft Diameter (d): 30mm
- Setscrew Used: M4 x 0.7
- Dimension (D): 62.0mm
- Dimension (Bi): 39.8mm
- Dimension (Be): 19.0mm
- Dimension (N): 15.9mm
- Dimension (M): 22.2mm
- Dimension (W): 55.5mm
- Dimension (K): 9.5mm
- Dimension (T): 5.3mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Weight (kN): 0.3
