Power Transmission > Bearings > Mounted Bearings > Insert Bearings

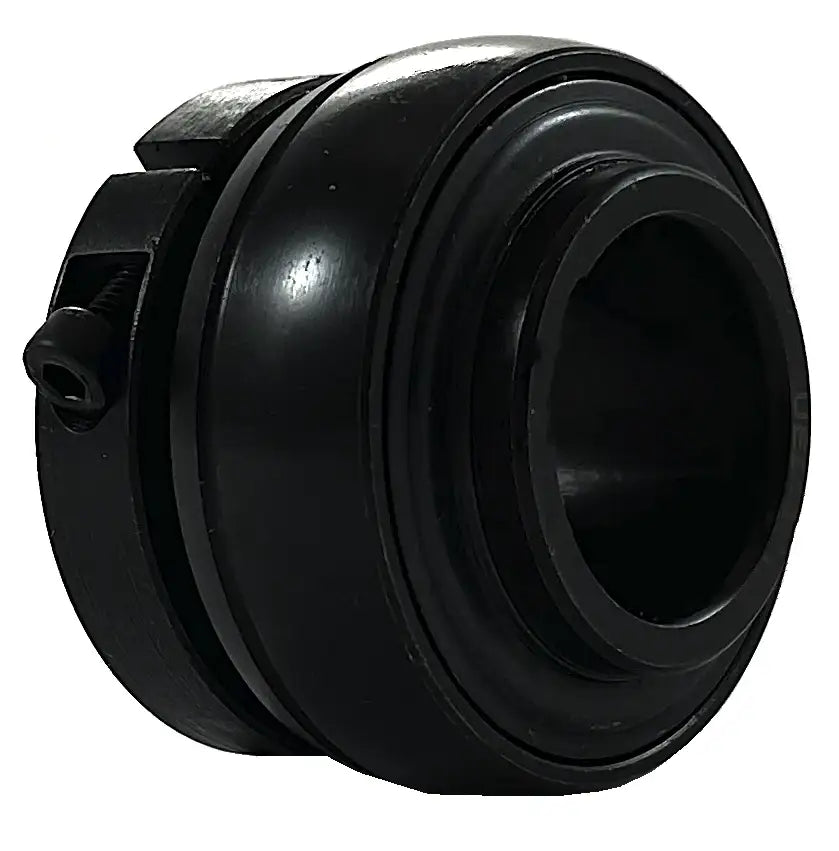

UE207-20 Bearing | 1-1/4" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$73.99
SKU: 2278-UE-207-20-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE207-20 Bearing | 1-1/4" Insert Bearing Features
UE207-20 Bearing | 1-1/4" Insert Bearing Specifications
UE207-20 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 1-1/4" shaft. Our UE207-20 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE207-20 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE207-20 bearings, contact our customer service and, we will be happy to assist you!
UE207-20 Bearing Dimensions
- Part #: UE 207-20
- Shaft Diameter (d): 1-1/4"
- Setscrew Used: 5/16-24
- Dimension (D): 2.8346"
- Dimension (Bi): 1.7283"
- Dimension (Be): 0.7874"
- Dimension (N): 0.6890"
- Dimension (M): 1.0000"
- Dimension (W): 2.520"
- Dimension (K): 0.433"
- Dimension (T): 0.2283"
- Dynamic Load Rating (LBS): 5,775
- Static Load Rating (LBS): 3,497
- Weight (LBS): 1.1
- Part #: UE 207-20
- Shaft Diameter (d): 1-1/4"
- Setscrew Used: 5/16-24
- Dimension (D): 2.8346"
- Dimension (Bi): 1.7283"
- Dimension (Be): 0.7874"
- Dimension (N): 0.6890"
- Dimension (M): 1.0000"
- Dimension (W): 2.520"
- Dimension (K): 0.433"
- Dimension (T): 0.2283"
- Dynamic Load Rating (LBS): 5,775
- Static Load Rating (LBS): 3,497
- Weight (LBS): 1.1
