Power Transmission > Bearings > Mounted Bearings > Insert Bearings

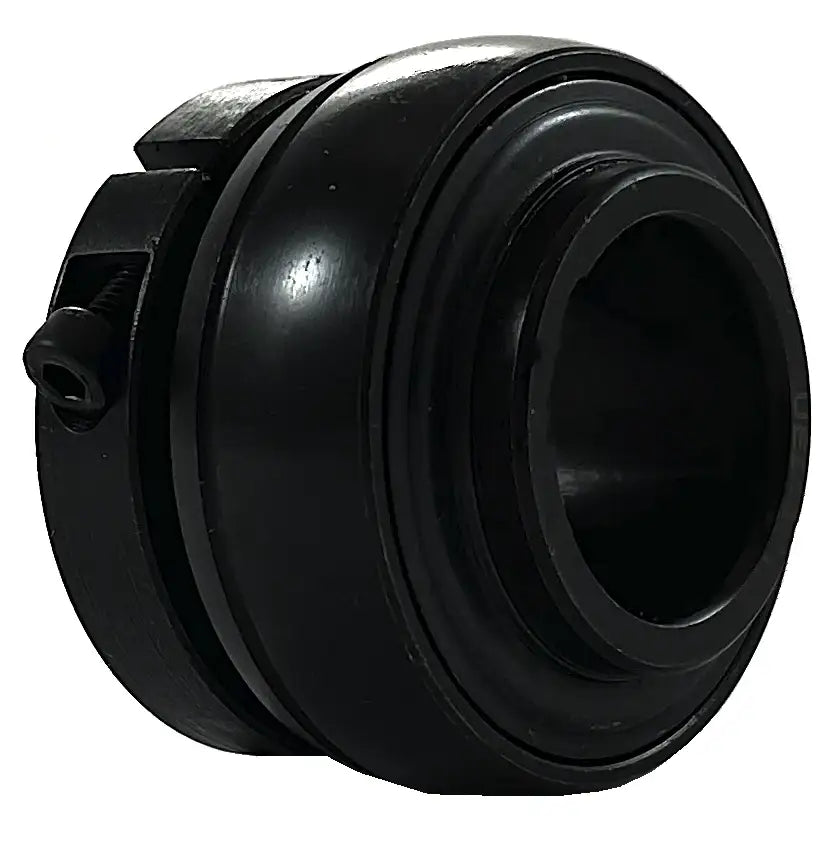

UE208 Bearing | 40mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-208-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE208 Bearing | 40mm Insert Bearing Features
UE208 Bearing | 40mm Insert Bearing Specifications
UE208 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 40mm shaft. Our UE208 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE208 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE208 bearings, contact our customer service and, we will be happy to assist you!
UE208 Bearing Dimensions
- Part #: UE 208
- Shaft Diameter (d): 40mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 80.0mm
- Dimension (Bi): 50.2mm
- Dimension (Be): 21.0mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (W): 68.0mm
- Dimension (K): 11.0mm
- Dimension (T): 6.2mm
- Dynamic Load Rating (kN): 29.51
- Static Load Rating (kN): 18.14
- Weight (kN): 0.7
- Part #: UE 208
- Shaft Diameter (d): 40mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 80.0mm
- Dimension (Bi): 50.2mm
- Dimension (Be): 21.0mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (W): 68.0mm
- Dimension (K): 11.0mm
- Dimension (T): 6.2mm
- Dynamic Load Rating (kN): 29.51
- Static Load Rating (kN): 18.14
- Weight (kN): 0.7
