Power Transmission > Bearings > Mounted Bearings > Insert Bearings

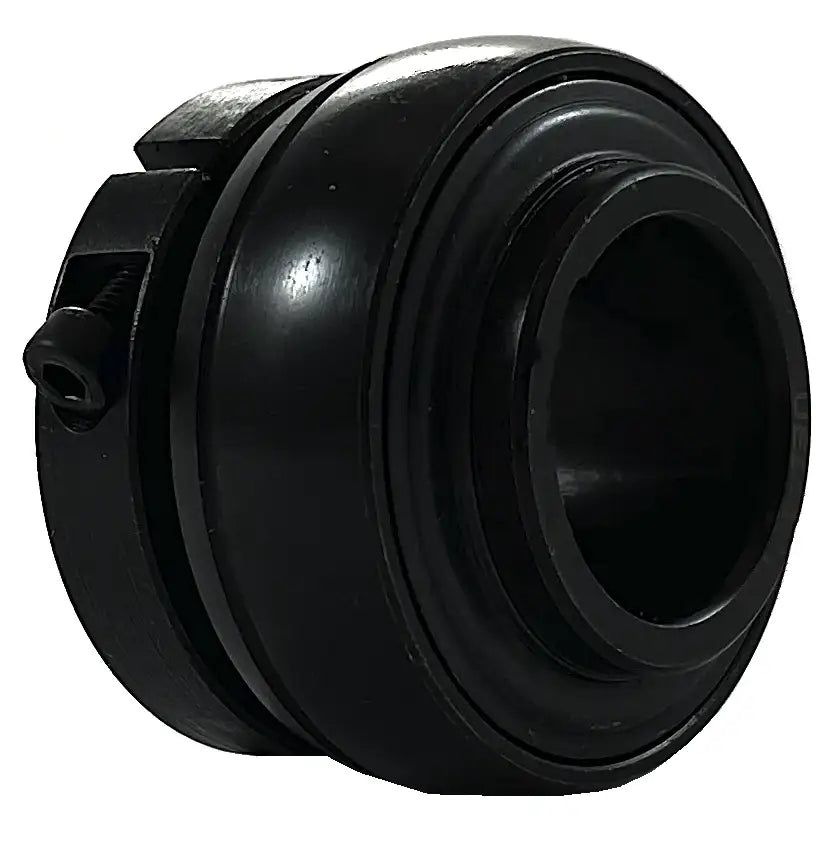

UE209 Bearing | 45mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-209-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE209 Bearing | 45mm Insert Bearing Features
UE209 Bearing | 45mm Insert Bearing Specifications
UE209 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 45mm shaft. Our UE209 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE209 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE209 bearings, contact our customer service and, we will be happy to assist you!
UE209 Bearing Dimensions
- Part #: UE 209
- Shaft Diameter (d): 45mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 85.0mm
- Dimension (Bi): 50.2mm
- Dimension (Be): 22.0mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (W): 74.0mm
- Dimension (K): 11.0mm
- Dimension (T): 6.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Weight (kN): 0.8
- Part #: UE 209
- Shaft Diameter (d): 45mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 85.0mm
- Dimension (Bi): 50.2mm
- Dimension (Be): 22.0mm
- Dimension (N): 19.0mm
- Dimension (M): 30.2mm
- Dimension (W): 74.0mm
- Dimension (K): 11.0mm
- Dimension (T): 6.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Weight (kN): 0.8
