UEF212-38 Bearing | 2-3/8" 4-Bolt Flange Bearing

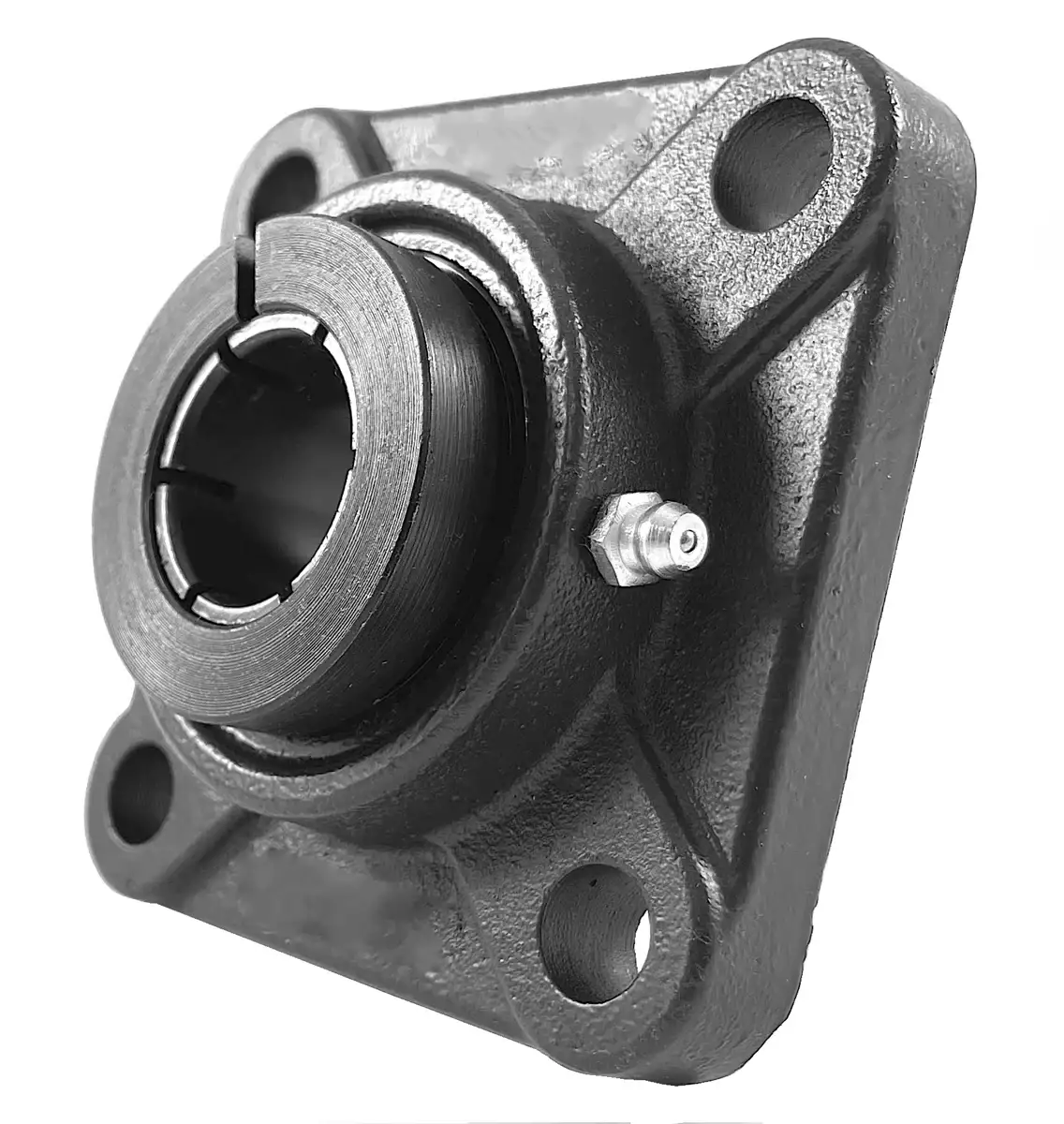

UEF212-38 bearing is a 2-3/8" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc to secure to a 2-3/8" shaft. UEF212-38 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UEF212-38 bearing with a 2-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEF212-38 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEF212-38 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEF212-38 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEF212-38 bearings, and we will be happy to assist you!

UEF212-38 Bearing Dimensions

• Part #: UEF 212-38
• Shaft Diameter (d): 2-3/8"
• Dimension (A): 6.88"
• Dimension (E): 5.625"
• Dimension (I): 1.13"
• Dimension (G): 0.79"
• Dimension (L): 1.88"
• Dimension (S): 0.69"
• Dimension (Z): 2.75"
• Dimension (Bi): 2.6220"
• Dimension (N): 1.0000"
• Dimension (M): 1.5630"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: UE 212-38
• Housing Number: F 212
• Weight (LBS): 12.5
