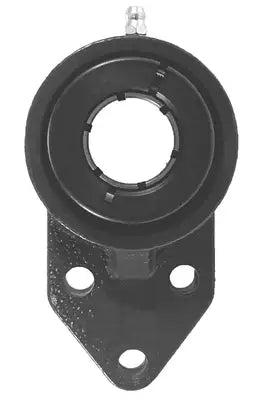

UEFBS207-23 Bearing | 1-7/16" 3-Bolt Flange Bearing

UEFBS207-23 bearing is a 1-7/16" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 1-7/16" shaft. UEFBS207-23 flange bearings are designed with an inch-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFBS207-23 bearing with a 1-7/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFBS207-23 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFBS207-23 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFBS207-23 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFBS207-23 bearings, and we will be happy to assist you!

UEFBS207-23 Bearing Dimensions

• Part #: UEFBS 207-23
• Shaft Diameter (d): 1-7/16"
• Dimension (A): 6.14"
• Dimension (H): 2.37"
• Dimension (E): 2.000"
• Dimension (J): 1.248"
• Dimension (I): 0.83"
• Dimension (G): 0.50"
• Dimension (L): 1.44"
• Dimension (S): 0.51"
• Dimension (B): 3.74"
• Dimension (F): 3.27"
• Dimension (Z): 1.88"
• Dimension (Bi): 1.7283"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UE 207-23
• Housing Number: FBS 207
• Weight (LBS): 2.9
