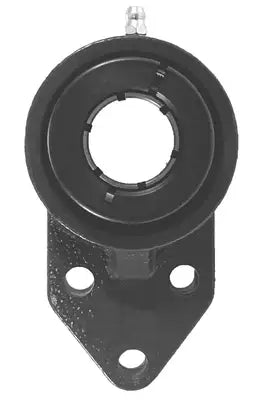

UEFBS210-30 Bearing | 1-7/8" 3-Bolt Flange Bearing

UEFBS210-30 bearing is a 1-7/8" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 1-7/8" shaft. UEFBS210-30 flange bearings are designed with an inch-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFBS210-30 bearing with a 1-7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFBS210-30 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFBS210-30 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFBS210-30 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFBS210-30 bearings, and we will be happy to assist you!

UEFBS210-30 Bearing Dimensions

• Part #: UEFBS 210-30
• Shaft Diameter (d): 1-7/8"
• Dimension (A): 7.48"
• Dimension (H): 2.94"
• Dimension (E): 2.756"
• Dimension (J): 1.626"
• Dimension (I): 0.83"
• Dimension (G): 0.50"
• Dimension (L): 1.50"
• Dimension (S): 0.52"
• Dimension (B): 4.65"
• Dimension (F): 4.02"
• Dimension (Z): 2.16"
• Dimension (Bi): 2.0709"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UE 210-30
• Housing Number: FBS 210
• Weight (LBS): 5.1
