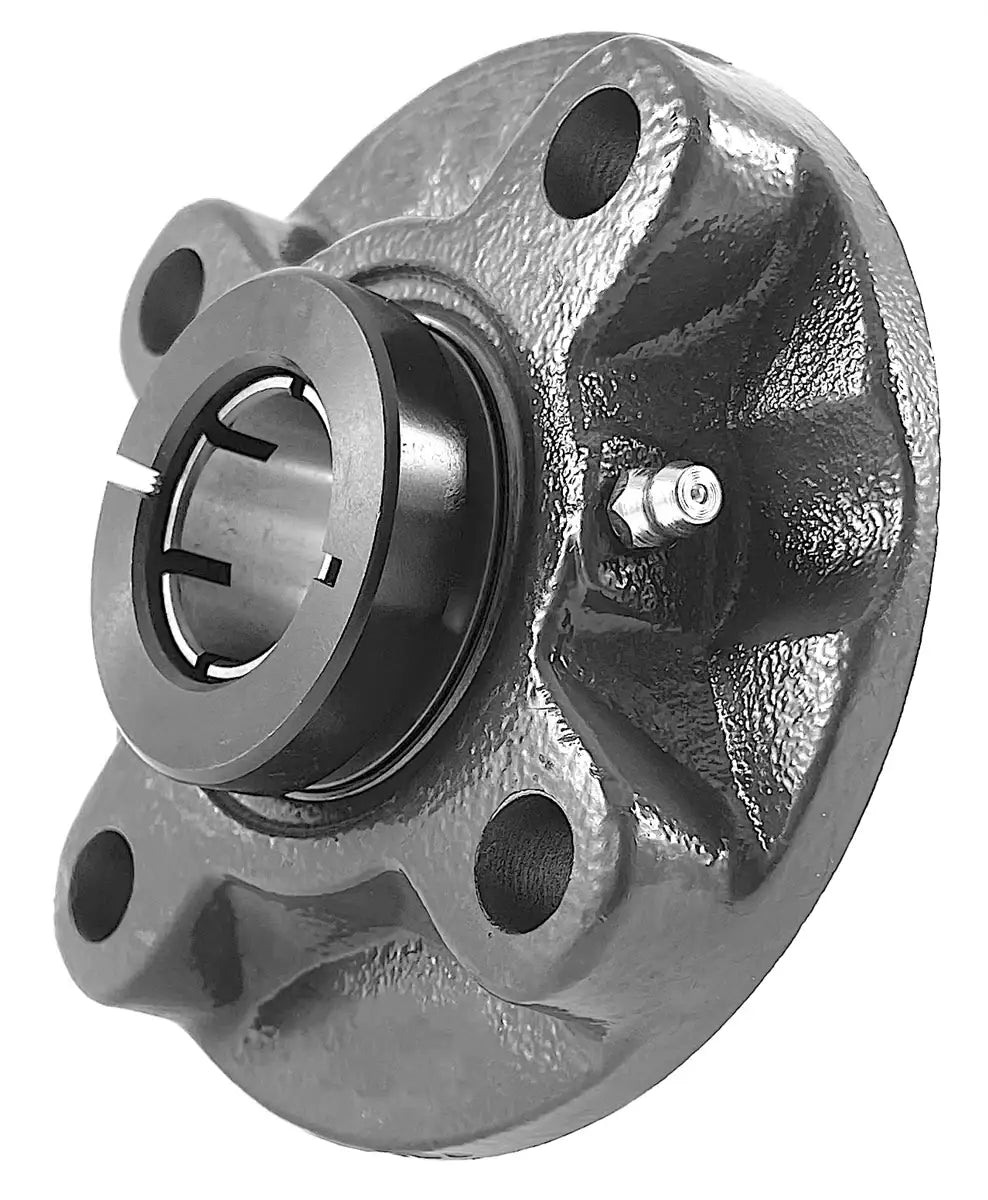

UEFC205-16 Bearing | 1" 4-Bolt Flange Bearing

UEFC205-16 bearing is a 1" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1" shaft and has a metric based housing. UEFC205-16 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC205-16 bearing with a 1" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC205-16 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC205-16 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC205-16 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC205-16 bearings, and we will be happy to assist you!

UEFC205-16 Bearing Dimensions

• Part #: UEFC 205-16
• Shaft Diameter (d): 1"
• Dimension (A): 4.53"
• Dimension (P): 3.54"
• Dimension (E): 2.50"
• Dimension (I): 0.39"
• Dimension (S): 0.47"
• Dimension (J): 0.24"
• Dimension (K): 0.28"
• Dimension (G): 0.83"
• Dimension (F): 2.76"
• Dimension (Z): 1.22"
• Dimension (Bi): 1.3937"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UE 205-16
• Housing Number: FC 205
• Weight (LBS): 2.2
