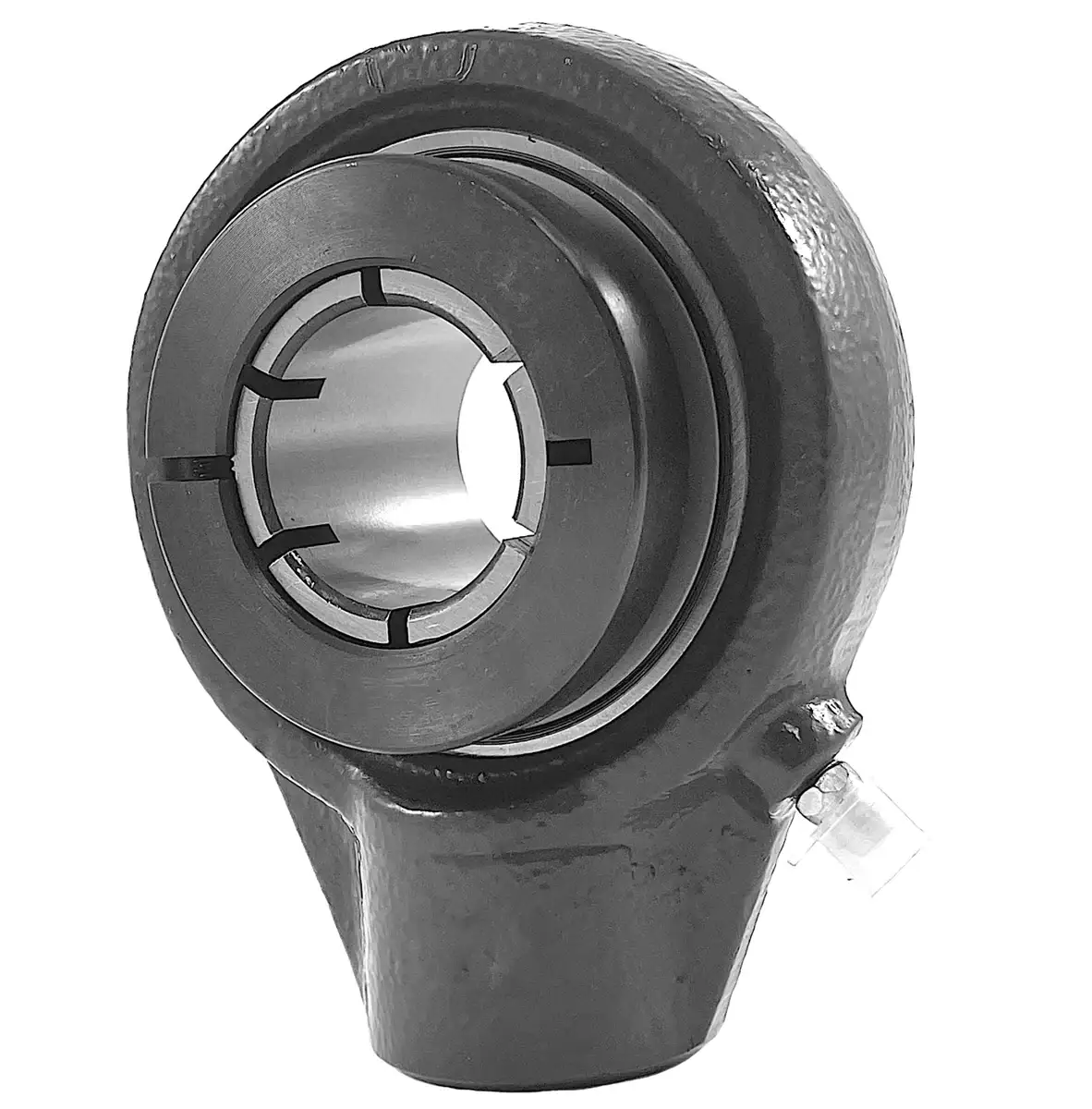

UEHA209-27 Bearing | 1-11/16" Hanger Bearing

UEHA209-27 bearing is a 1-11/16" bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 1-11/16" shaft. UEHA209-27 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA209-27 bearing with a 1-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA209-27 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA209-27 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA209-27 bearings, and we will be happy to assist you!

UEHA209-27 Hanger Bearing Dimensions

• Part #: UEHA 209-27
• Shaft Diameter (d): 1-11/16"
• Dimension (A): 4.25"
• Dimension (W): 5.35"
• Dimension (C): 0.20"
• Dimension (H): 3.23"
• Dimension (L): 1.89"
• Dimension (D): 0.83"
• Dimension (K): PF 1
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Dynamic Load Rating (LBS): 7,160
• Static Load Rating (LBS): 4,676
• Bearing Insert: UE 209-27
• Housing Number: HA 209
• Weight (LBS): 3.9
