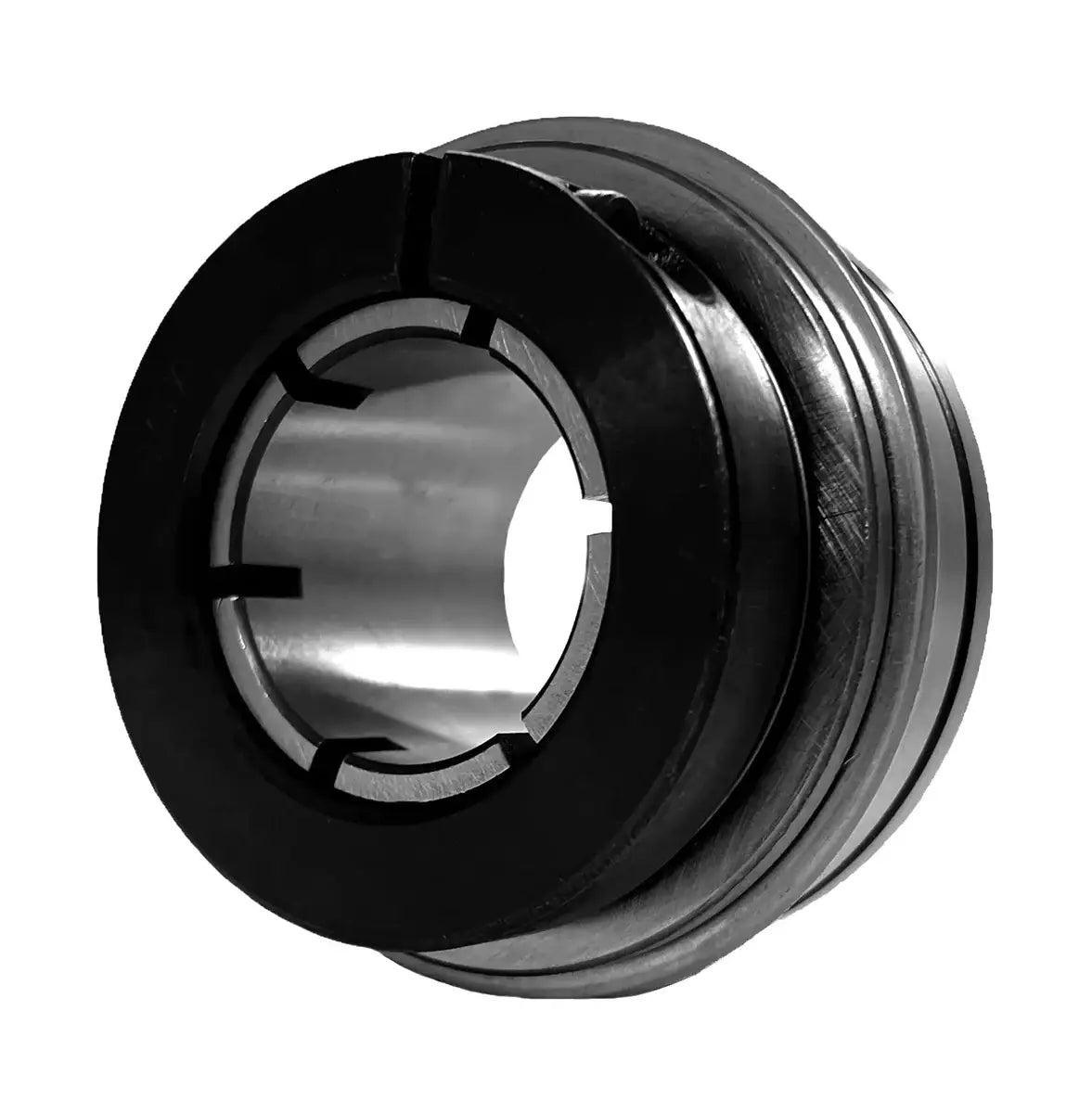

UER204 Insert Bearing | 20mm Insert Bearing With Snap Ring

UER204 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 20mm shaft. Our UER204 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER204 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER204 bearings, contact our customer service and, we will be happy to assist you!

UER204 Bearing Dimensions

• Part #: UER 204
• Shaft Diameter (d): 20mm
• Setscrew Used: M4 x 0.7
• Dimension (D): 47.0mm
• Dimension (Bi): 33.0mm
• Dimension (Be): 15.9mm
• Dimension (N): 10.3mm
• Dimension (M): 20.7mm
• Dimension (W): 40.8mm
• Dimension (K): 9.5mm
• Dimension (A): 1.1mm
• Dimension (AN): 2.4mm
• Dimension (Y): 52.7mm
• Dimension (T): 4.1mm
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Weight (kg): 0.2
