UER205-14 Insert Bearing | 7/8" Insert Bearing With Snap Ring

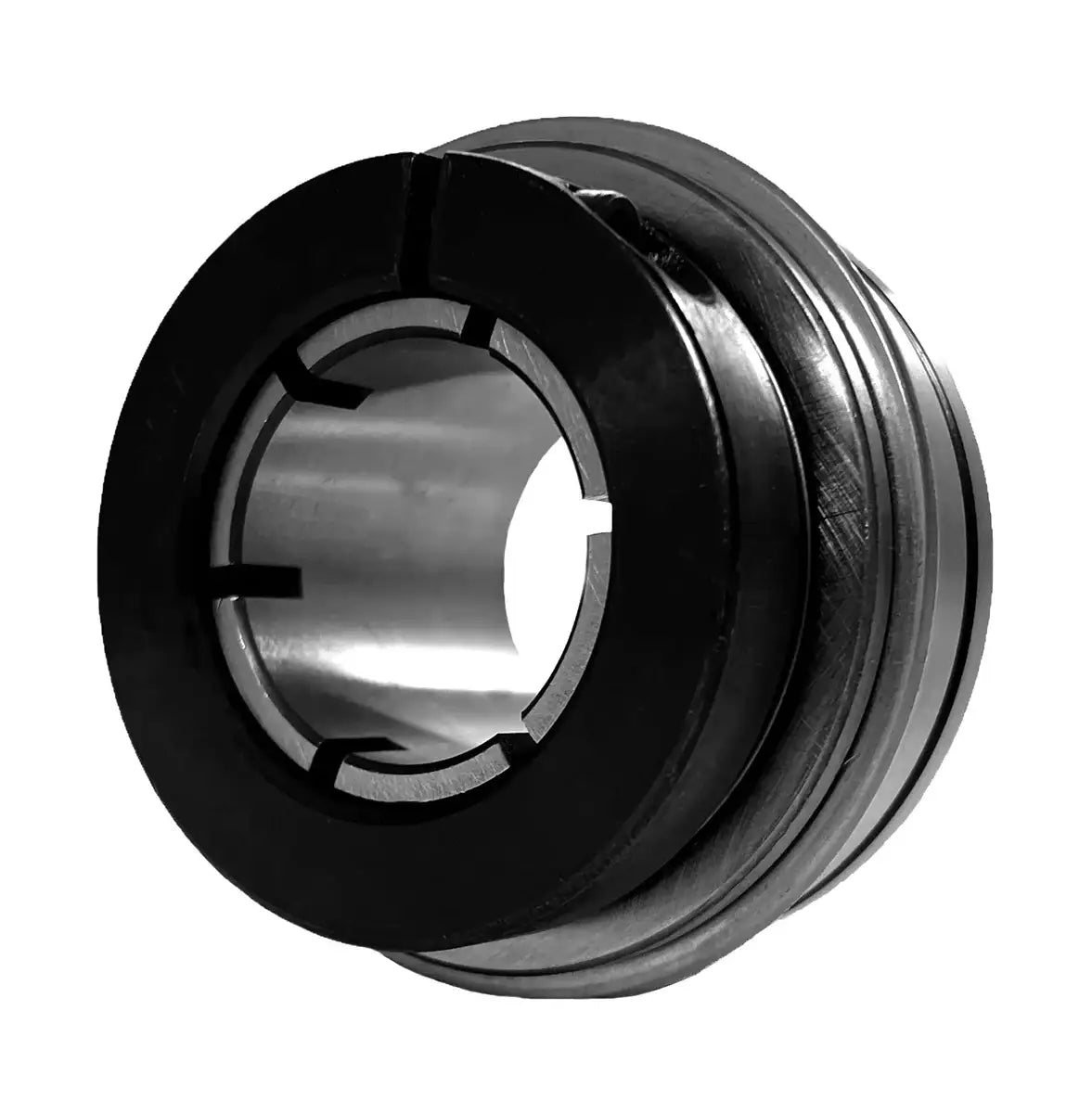

UER205-14 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 7/8" shaft. Our UER205-14 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER205-14 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER205-14 bearings, contact our customer service and, we will be happy to assist you!

UER205-14 Bearing Dimensions

• Part #: UER 205-14
• Shaft Diameter (d): 7/8"
• Setscrew Used: 1/4-28"
• Dimension (D): 2.0472"
• Dimension (Bi): 1.3937"
• Dimension (Be): 0.7480"
• Dimension (N): 0.5157"
• Dimension (M): 0.8583"
• Dimension (W): 1.929"
• Dimension (K): 0.374"
• Dimension (A): 0.0421"
• Dimension (AN): 0.0937"
• Dimension (Y): 2.2795"
• Dimension (T): 0.2165"
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Weight (LBS): 0.5
