UK209-40 Insert Bearing | 40mm Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-209-40-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK209-40 Insert Bearing | 40mm Tapered Adapter Insert Bearing Features
UK209-40 Insert Bearing | 40mm Tapered Adapter Insert Bearing Specifications

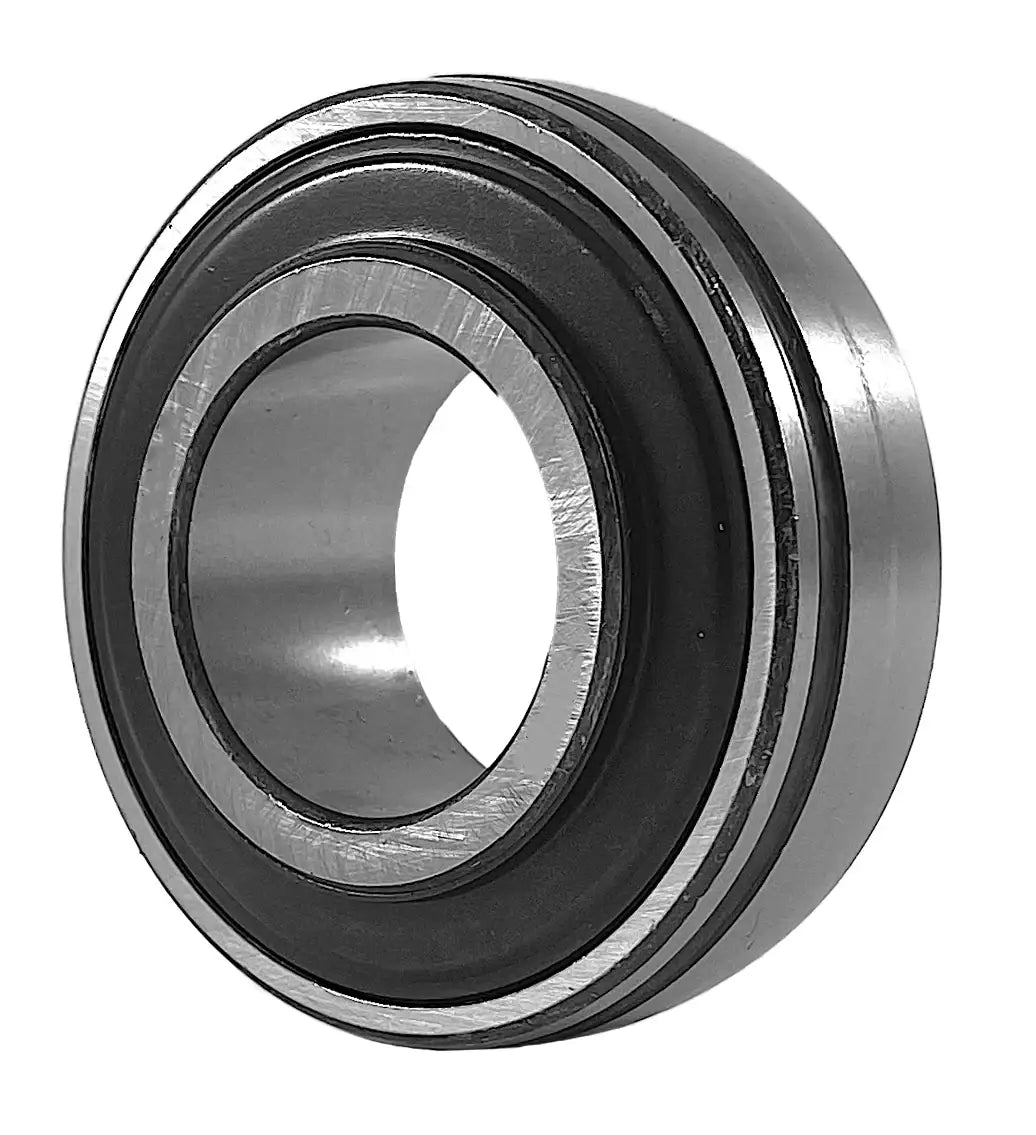

UK209-40 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 40mm bore. Our UK209-40 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK209-40 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK209-40 bearings, contact our customer service and, we will be happy to assist you!
UK209-40 Bearing Dimensions
- Part #: UK 209
- Shaft Diameter (d): 40mm
- Dimension (d): 45.0mm
- Dimension (D): 85.0mm
- Dimension (Bi): 30.0mm
- Dimension (Be): 22.0mm
- Dimension (T): 6.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Fits Housing Size: 210 / X09
- Weight (kg): 0.7
- Part #: UK 209
- Shaft Diameter (d): 40mm
- Dimension (d): 45.0mm
- Dimension (D): 85.0mm
- Dimension (Bi): 30.0mm
- Dimension (Be): 22.0mm
- Dimension (T): 6.5mm
- Dynamic Load Rating (kN): 31.85
- Static Load Rating (kN): 20.80
- Fits Housing Size: 210 / X09
- Weight (kg): 0.7
