7204BUA Angular Contact Bearing Pair | 7204BUA - 20x47x28

Note: Custom Cut to Length Chain Also Available
SKU: 2278BRG-7204BUA
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714373812591" , "metafield_value":""}]
7204BUA Angular Contact Bearing Pair | 7204BUA - 20x47x28 Features
7204BUA Angular Contact Bearing Pair | 7204BUA - 20x47x28 Specifications

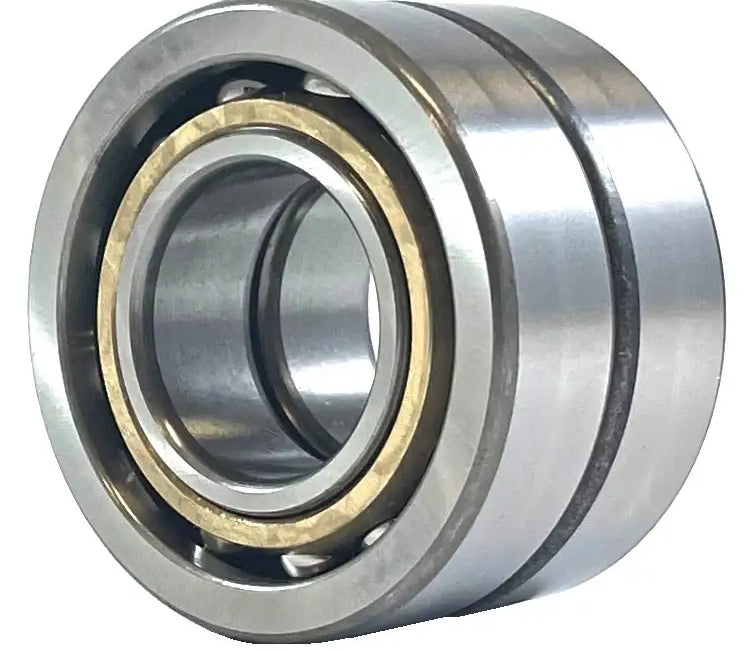

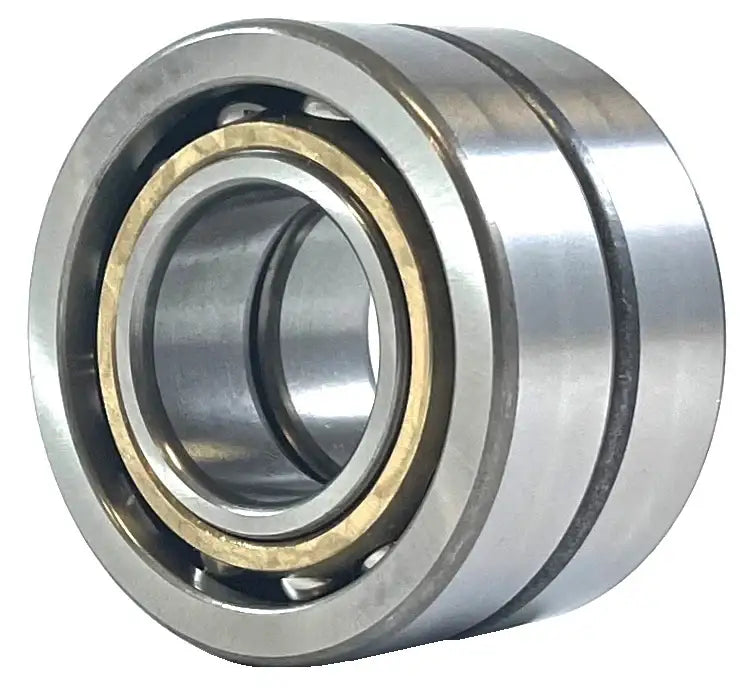

This 7204-BUA Duplex bearing is a high-precision 45-degree 20x47x28 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7204-BUA Duplex bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7204-BUA Duplex bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!

7204-BUA Duplex Bearing Dimensions

7204BUA Angular Contact Bearing Pair | 7204BUA - 20x47x28

  • Bearing Size:7204-BUA
  • Dimension (d): 20mm
  • Dimension (D): 47mm
  • Dimension (B): 28mm
  • Dynamic Load Rating: 4860 LBS
  • Static Load Rating: 3470 LBS
  • Limiting Speed (Grease): 10000 RPM
  • Limiting Speed (OIL): 14000 RPM
  • Bearing Size:7204-BUA
  • Dimension (d): 20mm
  • Dimension (D): 47mm
  • Dimension (B): 28mm
  • Dynamic Load Rating: 4860 LBS
  • Static Load Rating: 3470 LBS
  • Limiting Speed (Grease): 10000 RPM
  • Limiting Speed (OIL): 14000 RPM
