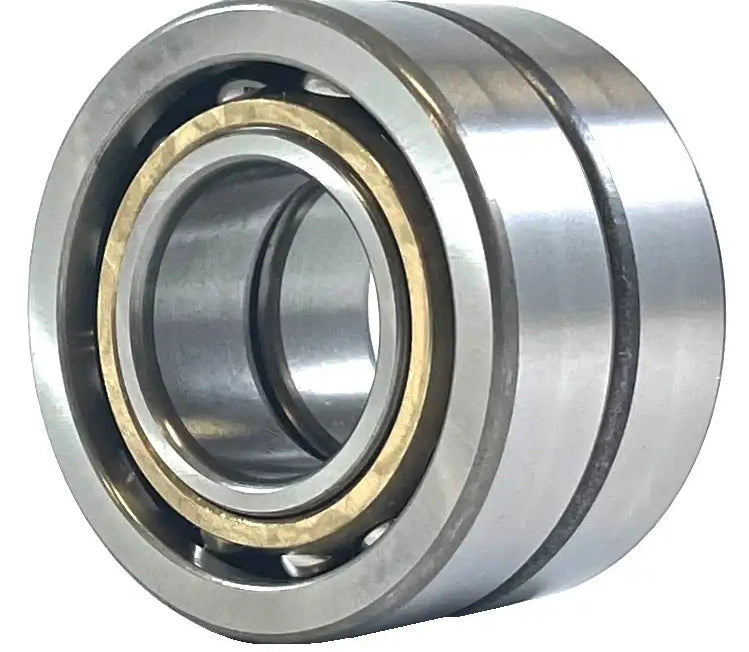

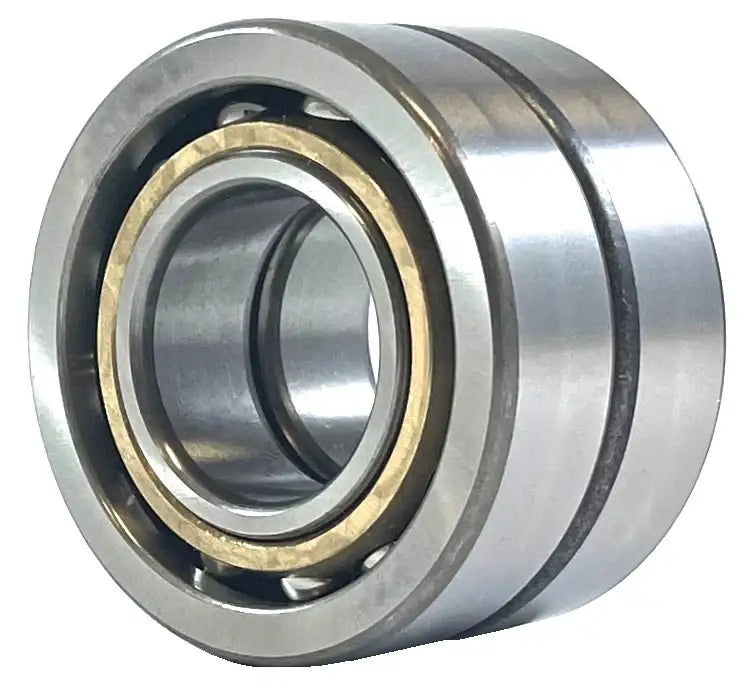

7224BUA Angular Contact Bearing Pair | 7224BUA - 120x215x80

Note: Custom Cut to Length Chain Also Available
SKU: 2278BRG-7224BUA
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51714375057775" , "metafield_value":""}]
7224BUA Angular Contact Bearing Pair | 7224BUA - 120x215x80 Features
7224BUA Angular Contact Bearing Pair | 7224BUA - 120x215x80 Specifications
This 7224-BUA Duplex bearing is a high-precision 45-degree 120x215x80 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7224-BUA Duplex bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7224-BUA Duplex bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!

7224-BUA Duplex Bearing Dimensions

7224BUA Angular Contact Bearing Pair | 7224BUA - 120x215x80

  • Bearing Size:7224-BUA
  • Dimension (d): 120mm
  • Dimension (D): 215mm
  • Dimension (B): 80mm
  • Dynamic Load Rating: 57780 LBS
  • Static Load Rating: 67900 LBS
  • Limiting Speed (Grease): 2100 RPM
  • Limiting Speed (OIL): 2800 RPM
  • Bearing Size:7224-BUA
  • Dimension (d): 120mm
  • Dimension (D): 215mm
  • Dimension (B): 80mm
  • Dynamic Load Rating: 57780 LBS
  • Static Load Rating: 67900 LBS
  • Limiting Speed (Grease): 2100 RPM
  • Limiting Speed (OIL): 2800 RPM
