Module 4 Stainless Gear Rack (40X40X36) - 1000mm
Note:
Custom Cut to Length Chain Also Available
SKU: 24499605-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 4 Stainless Gear Rack (40X40X36) - 1000mm Features
Module 4 Stainless Gear Rack (40X40X36) - 1000mm Specifications

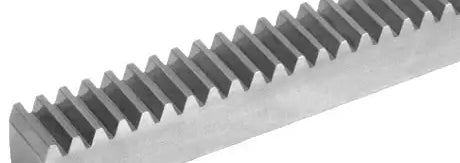

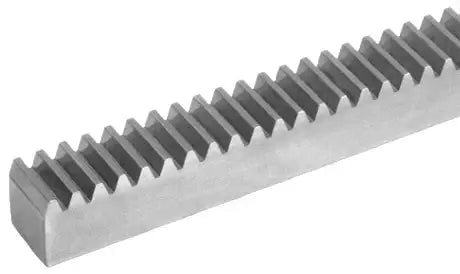

Our module 4 stainless steel gear rack is precisely manufactured from 303-grade stainless steel and utilizes a 20-degree pressure angle straight tooth profile; the rack conforms with DIN 867/ DIN 3972 standards for direct interchangeability and function. This rack is 40mm x 40mm x 36mm and 1000mm long. Made from stainless steel, the rack can operate in various temperatures and food-grade, abrasive, and corrosive environments. We also supply a range of stainless steel spur gears for module 4 stainless racks and a mounting aid for ease of continuous mounting. For additional information or to get a quote on our module 4 stainless steel gear rack and gears, contact our customer support team, and we will gladly assist you!
Module 4 Stainless Gear Rack dimensions
- Part #: 24499605
- Module:4
- Dimension (b): 40mm
- Dimension (H): 40mm
- Dimension (h): 36.0mm
- Length (L): 1000mm
- Weight: 11.14 KG
- Part #: 24499605
- Module:4
- Dimension (b): 40mm
- Dimension (H): 40mm
- Dimension (h): 36.0mm
- Length (L): 1000mm
- Weight: 11.14 KG
