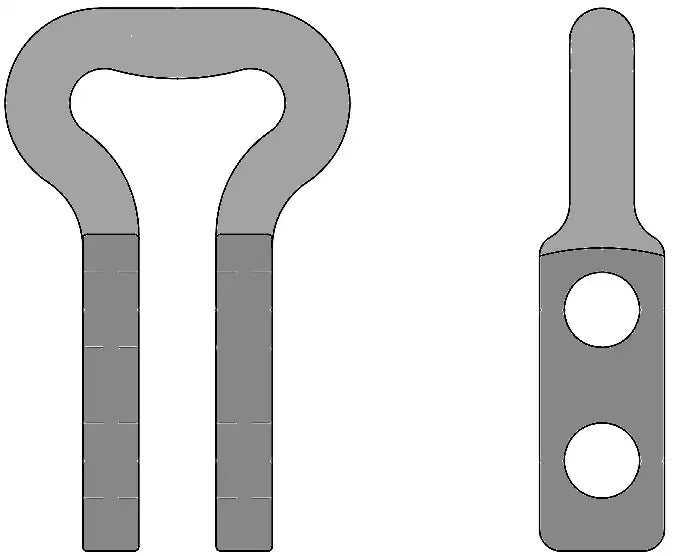

26X92 Double Shackle | Round Link Double Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 26X92-DBL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
26X92 Double Shackle | Round Link Double Bolt Shackle Features
26X92 Double Shackle | Round Link Double Bolt Shackle Specifications
Our 26X92 double bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific double bolt shackle is particularly made for a 26X92 round link chain and has two bolt holes of 0.88". It is important to note that when installing a 26X92 double bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 26X92 double bolt shackles, contact our customer support team, and we will gladly assist you!
26X92 double Bolt Shackle Dimensions
- Chain Size: 26X92
- Dimension (A-Bolt): 0.88"
- Dimension (B): 3.75"
- Dimension (C): 1.12"
- Dimension (D): 2.25"
- Dimension (E): 2.38"
- Weight: 7.05 LBS
- Chain Size: 26X92
- Dimension (A-Bolt): 0.88"
- Dimension (B): 3.75"
- Dimension (C): 1.12"
- Dimension (D): 2.25"
- Dimension (E): 2.38"
- Weight: 7.05 LBS
