By Application > Mining Chain & Sprockets > High-Strength Mining Round Link Chain
26X92 Single Shackle | Round Link Single Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 26X92-SGL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
26X92 Single Shackle | Round Link Single Bolt Shackle Features
26X92 Single Shackle | Round Link Single Bolt Shackle Specifications
Our 26X92 single bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific single bolt shackle is particularly made for a 26X92 round link chain and has a bolt hole of 1.00". It is important to note that when installing a 26X92 single bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 26X92 single bolt shackles, contact our customer support team, and we will gladly assist you!

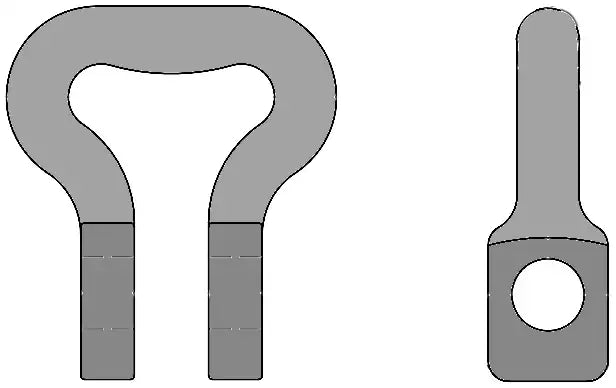

26X92 Single Bolt Shackle Dimensions
- Chain Size: 26X92
- Dimension (A-Bolt): 1.00"
- Dimension (B): 3.50"
- Dimension (C): 1.12"
- Dimension (D): 2.25"
- Weight: 5.51 LBS
- Chain Size: 26X92
- Dimension (A-Bolt): 1.00"
- Dimension (B): 3.50"
- Dimension (C): 1.12"
- Dimension (D): 2.25"
- Weight: 5.51 LBS
