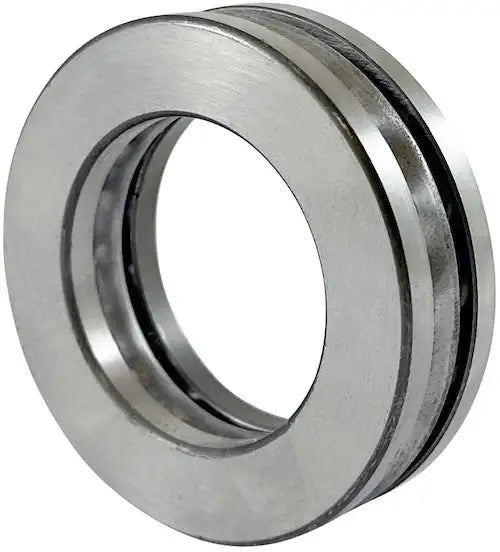

909 Thrust Ball Bearing | 909 Thrust Bearing - 45mm
Note:
Custom Cut to Length Chain Also Available
SKU: 2783-909-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
909 Thrust Ball Bearing | 909 Thrust Bearing - 45mm Features
909 Thrust Ball Bearing | 909 Thrust Bearing - 45mm Specifications
The 909 thrust bearing is a single direction, thrust ball bearing with a 45mm bore and grooved races. What separates this bearing from some of the other 909 bearings on the market is its precision-made components, 52100 thru-hardened steel rings and balls, and high-quality, low-carbon steel band. This bearing is also supplied with light oil lubrication from the factory and features an oil hole in the band for relubricating. Thrust ball bearings are rotary bearings designed to support a predominately axial load. 909 bearings are composed of bearing balls that are supported in a ring and allow for use in applications with low thrust and little axial load. For additional information or to get a quote on 909 thrust ball bearings, contact our customer support team, and we will be happy to assist you!
909 Thrust Bearing Dimensions
- Bearing Part #: 909
- Dimension (A): 45mm
- Dimension (A): 1.7717"
- Dimension (A1): 1.780"
- Dimension (B): 73mm
- Dimension (B): 2.874"
- Dimension (H): 22mm
- Dimension (H): 0.866"
- Number of Balls: 16
- Ball Size: 0.406"
- Static Load Rating: 20400 LBS
- Dynamic Load Rating: 11900 LBS
- Speed Limit: 3650 RPM
- Weight: 0.78LBS
- Bearing Part #: 909
- Dimension (A): 45mm
- Dimension (A): 1.7717"
- Dimension (A1): 1.780"
- Dimension (B): 73mm
- Dimension (B): 2.874"
- Dimension (H): 22mm
- Dimension (H): 0.866"
- Number of Balls: 16
- Ball Size: 0.406"
- Static Load Rating: 20400 LBS
- Dynamic Load Rating: 11900 LBS
- Speed Limit: 3650 RPM
- Weight: 0.78LBS
