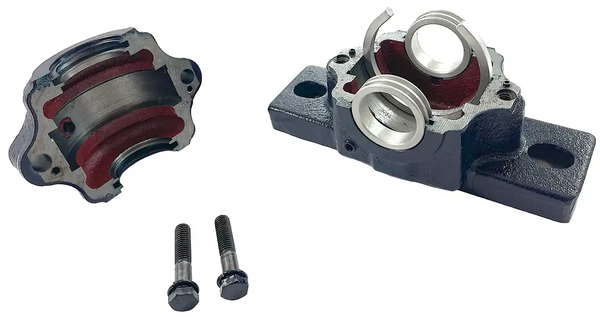

FSAF517 Housing | FSAF 517 Split Pillow Block Housing

FSAF 517 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a FSAF517 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our FSAF517 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. FSAF517 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our FSAF 517 housing, contact our customer support team, and we will be happy to assist you!

FSAF 517 Housing Dimensions

• Housing #: FSAF517
• Dimension (D): 150mm
• Dimension (a): 13"
• Dimension (b): 3-1/2"
• Dimension (c): 1-1/4"
• Dimension (h): 3-3/4"
• Dimension (W): 7-5/16"
• Dimension (M - max.): 11"
• Dimension (M - min.): 9-7/8"
• Dimension (n): 2-1/8"
• Dimension (S): 5/8"
• Cap Bolt Size: 1/2-13
• Style: 2
• Labyrinth Seal Ring: LER53
• Stabilizing Ring: SR17-14
• Weight (LBS): 31.00
