SAF524 Housing | SAF 524 Split Pillow Block Housing

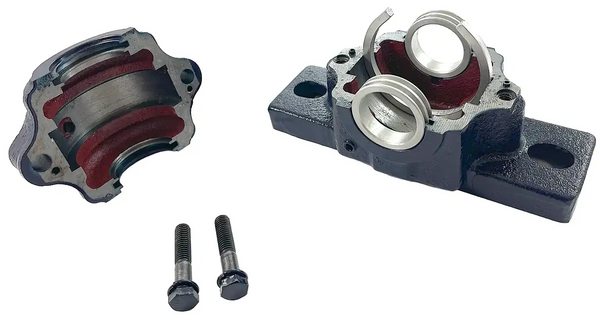

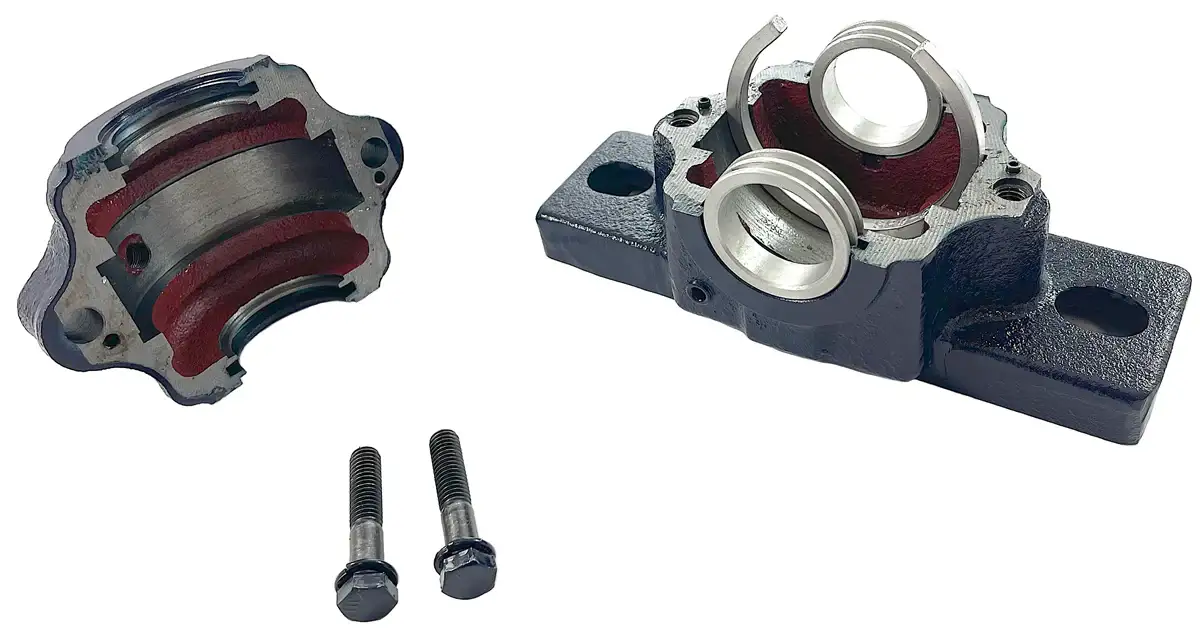

SAF 524 housings are designed for some extreme industrial applications; this housing is a split pillow block housing made from cast iron for spherical roller bearings. The split design of a SAF524 housing allows for easy mounting and maintenance, while the heavy-duty construction permits this bearing to operate in higher-load applications compared to other types. Our SAF524 bearing is cast from a high-grade cast and is designed with a reinforced webbed base for better heat distribution and prevention of over-tightening. Additionally, the housing features two threaded plugged holes on top for a grease fitting and various testing equipment, while the bottom faces of the housing have a drain plug on each side. SAF524 housings are commonly found in applications such as; steel mills, queries, and large drive or conveying applications. For additional information or to get a quote on our SAF 524 housing, contact our customer support team, and we will be happy to assist you!

SAF 524 Housing Dimensions

• Housing #: SAF524
• Dimension (D): 215mm
• Dimension (a): 16-1/2"
• Dimension (b): 4-3/4"
• Dimension (c): 2-1/8"
• Dimension (h): 5-1/4"
• Dimension (W): 10-1/4"
• Dimension (M - max.): 14-1/2"
• Dimension (M - min.): 13-1/4"
• Dimension (n): 2-3/4"
• Dimension (S): 3/4"
• Cap Bolt Size: 3/4-10
• Style: 3

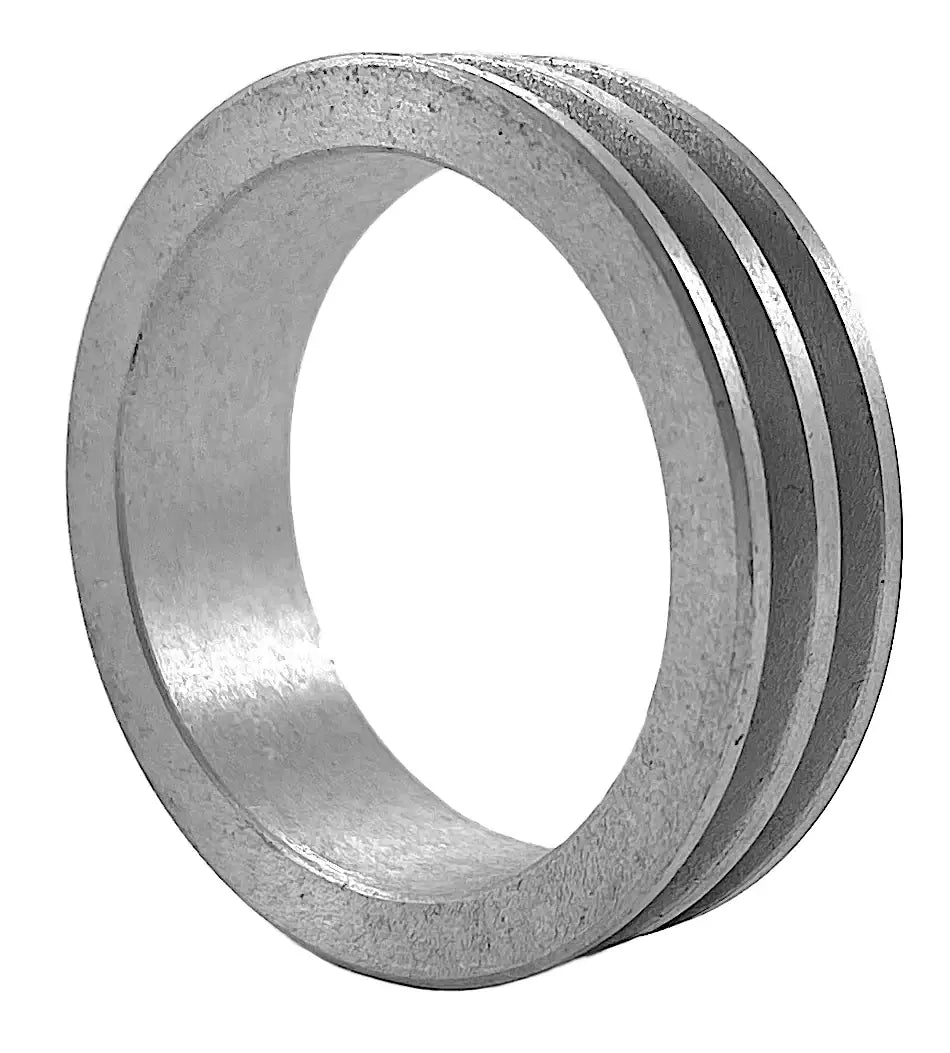

• Labyrinth Seal Ring: LER113

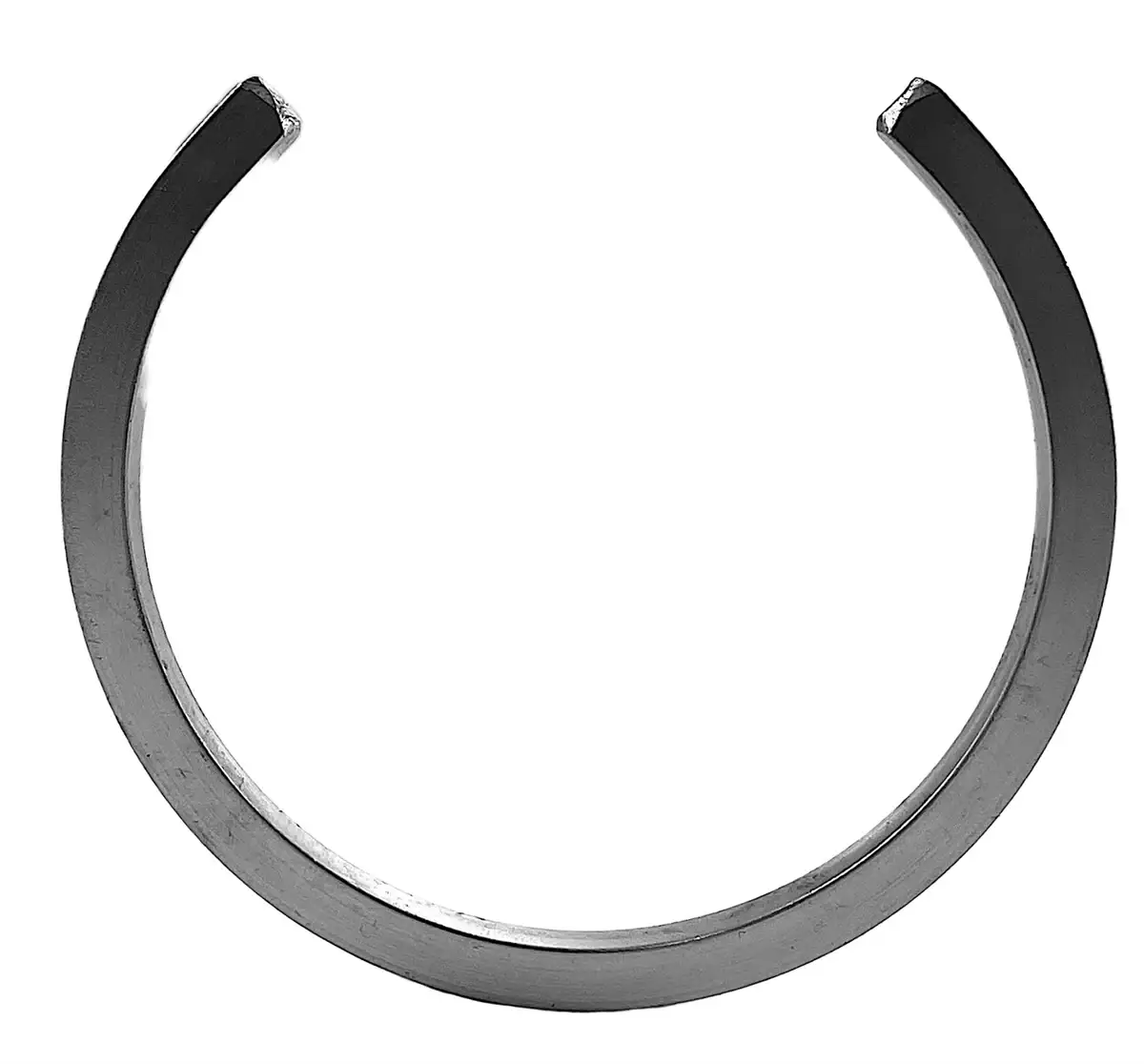

• Stabilizing Ring: SR24-20
• Weight (LBS): 66.10
