Eccentric MJX4A Journal For Size 4 Guide Wheel
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-MJX4A
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
Eccentric MJX4A Journal For Size 4 Guide Wheel Features
Eccentric MJX4A Journal For Size 4 Guide Wheel Specifications

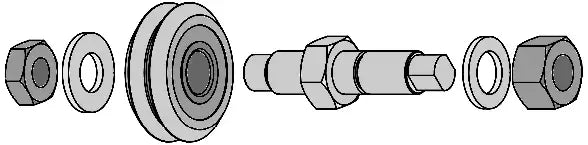

The eccentric MJX4A journal is manufactured for size 4 dual-v guide wheel bearings and is a component for mounting purposes. This MJX4A journal utilizes precision mounting diameter tolerances of +0.000"/ -0.002" and is supplied with mounting nuts and washers. The journal material its self is 303 stainless along with the washers, and the nuts are Nylon locking zinc plated carbon steel for long term durability in any application. Contact our customer support team for additional information or to get a quote on eccentric MJX4A journals, and we will be happy to assist you!
MJX4A Journal Dimensions
- Part #: MJX4A
- For Wheel size: 4
- Adjustability: Eccentric
- Eccentric Offset (A): 0.060"
- Overall Length (B): 3.068"
- Wheel Mounting Diameter (C): 0.5904"
- Journal Mounting Diameter (D): 0.500"
- Journal Length (E): 1.565"
- Wheel Mount Thread (F): 1/2-20
- Wheel Mount Thread (G): 1/2-20
- Hex Thickness (H): 0.437"
- Vee Height (J): 0.812"
- Hex Size (K): 0.875"
- Wrench Flats (L): 0.312"
- Min. Mounting Plate Thickness: 0.375"
- Max. Mounting Plate Thickness: 0.750"
- Part #: MJX4A
- For Wheel size: 4
- Adjustability: Eccentric
- Eccentric Offset (A): 0.060"
- Overall Length (B): 3.068"
- Wheel Mounting Diameter (C): 0.5904"
- Journal Mounting Diameter (D): 0.500"
- Journal Length (E): 1.565"
- Wheel Mount Thread (F): 1/2-20
- Wheel Mount Thread (G): 1/2-20
- Hex Thickness (H): 0.437"
- Vee Height (J): 0.812"
- Hex Size (K): 0.875"
- Wrench Flats (L): 0.312"
- Min. Mounting Plate Thickness: 0.375"
- Max. Mounting Plate Thickness: 0.750"
