MV0WPA MinVee Wheel Plate
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-MV0WPA
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
MV0WPA MinVee Wheel Plate Features
MV0WPA MinVee Wheel Plate Specifications

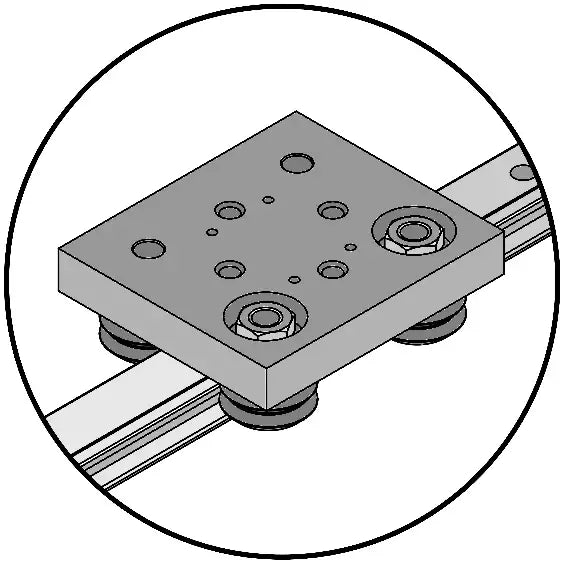

The Minvee MV0WPA wheel plate is made for space restrained linear motion applications and utilizes two size 0 concentric and eccentric dual-v guide wheel bearings. The MV0WPA features AISI 52100 carbon steel guide bearings with stainless steel shields for protecting the bearings. The wheel plate is made from 6061-T6 clear anodized aluminium and has a stainless steel lubricator housing with felt lubrication pads. For additional information or to get a quote on MV0WPA wheel plates, contact our customer service team, and we will be happy to assist you!
MV0WPA Wheel Plate Dimensions
- Part #: MV0WPA
- Wheel Version: AISI 52100 Carbon Steel, Shielded
- Temperature Range (�F): -31 To 248
- Maximum Speed: 5 m/s
- Maximum Acceleration: 5 g
- Pitch Moment (Mp): 7.9 Nm
- YAW Moment (My): 8.6 Nm
- Roll Moment (Mr): 6.2 Nm
- Working Axial Load Capacity (LA): 540 N
- Working Radial Load Capacity (LR): 490 N
- Weight: 84 Grams
- Part #: MV0WPA
- Wheel Version: AISI 52100 Carbon Steel, Shielded
- Temperature Range (�F): -31 To 248
- Maximum Speed: 5 m/s
- Maximum Acceleration: 5 g
- Pitch Moment (Mp): 7.9 Nm
- YAW Moment (My): 8.6 Nm
- Roll Moment (Mr): 6.2 Nm
- Working Axial Load Capacity (LA): 540 N
- Working Radial Load Capacity (LR): 490 N
- Weight: 84 Grams
