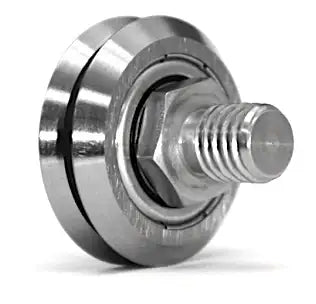

Eccentric SWAE0 Studded V-Guide Bearing - Thru-Hole Style

The eccentric thru-hole style SWAE0 studded v-guide wheel roller bearing is a modern engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. Having a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWAE0 bearings are utilized in automation, woodworking, printing, packaging, and textile applications. The SWAE0 bearing features stainless steel shields for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for general purpose uses and factory floor conditions. For more information or a quote on SWAE0 bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWAE0 Studded V-Guide Bearing Dimensions

• Part #: SWAE0
• Wheel Size: 0
• Adjustability: Eccentric
• Eccentric Offset (A): 0.024"
• Overall Length (B): 0.74"
• Wheel Diameter (C): 0.584"
• Journal Diameter (D1): 0.1566"
• Journal Length (E): 0.39"
• Thread Length (F): 0.24"
• Thread (G): M4 X 0.7
• Hex Thickness (H2): 0.080"
• Vee Height (J): 0.205"
• Hex Size (K): 0.433"
• Protection: Shield
• Wheel Material: 52100 Steel
• Ball Retainer Material: Nylon 6,6
• Grease: Shell Alvania EP2
• Temperature Range (�F): -31 to +248
• Shield Material: 300 Series Stainless
