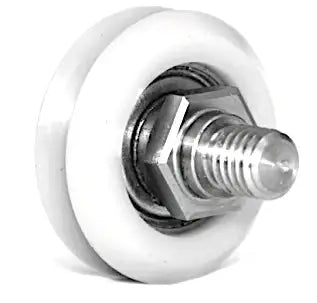

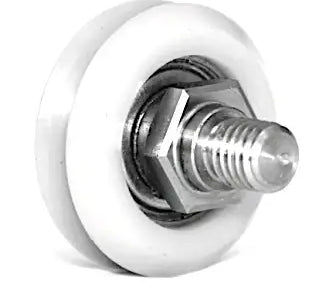

Concentric SWIC0P Studded V-Guide Bearing - Polymer

The concentric SWIC0P studded v-guide wheel roller bearing is a studded polymer wheel that is a modern engineering miracle for effective long-term linear motion requirements. V-guide wheel bearings offer the ultimate design flexibility for virtually any guided motion application. Having a 90-degree angle, the v-bearing creates a natural wiping action while also clearing debris from the system. SWIC0P bearings are utilized in electronics, medical, and laboratory applications. The SWIC0P bearing features stainless steel shields for protection, keeping the internal lubricant in while unwanted debris is out; this bearing is fantastic for general purpose uses and factory floor conditions. For more information or a quote on SWIC0P bearings and accessories, please get in touch with our customer support team, and we will be happy to assist you!

SWIC0P Studded V-Guide Bearing Dimensions

• Part #: SWIC0P
• Wheel Size: 0
• Adjustability: Concentric
• Thread (D): M6 X 1.0
• Thread Length (E): 0.300"
• Overall Length (F): 0.667"
• Wheel diameter (G): 0.584"
• Journal Length (H): 0.300"
• Hex Thickness (J): 0.117"
• Vee Height (K): 0.242"
• Hex Size (L): 0.433"
• Protection: Shield
• Wheel Material: Polymer Overmold on 440C Stainless
• Ball Retainer Material: 300 Stainless
• Grease: Kluberplex BEM034-132
• Temperature Range (�F): -4 to +248
• Shield Material: 300 Series Stainless
