TL1A Track Lubricator
Note:
Custom Cut to Length Chain Also Available
SKU: 2924-TL1A
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
TL1A Track Lubricator Features
TL1A Track Lubricator Specifications

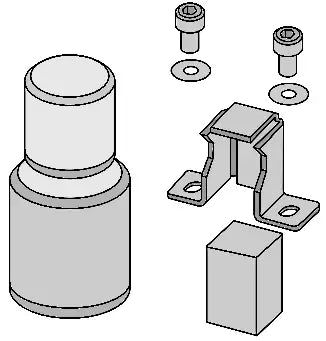

TL1A track lubricator is made for size 1 studded wheels with standard bushings and journals; it utilizes a premium white wool felt tip for optimal lubrication dispensing. It is recommended to use a lightweight synthetic oil for track lubricating. The felt holder and mounting hardware are made from AISI 300 stainless steel to provide long-term operation in various environments. For more information or to get a quote on TL1A track lubricators, contact us, and we will be happy to assist you!
TL1A Track Lubricator Dimensions
- Part #: TL1A
- Size: 1
- Mounting Compatibility: Bushings Standard Journals
- Overall Height (A): 0.690"
- Overall Length (B): 1.102"
- Overall Width (C): 0.450"
- Holder Length (D): 0.472"
- Slot Diameter (E): 0.120"
- Slot Span (F): 0.787"
- Slot Center (G): 0.180"
- Mounting Surface To Track Vee Min: 0.370"
- Mounting Surface To Track Vee Max: 0.500"
- Mounting Screws: M2 X 0.4 X 5mm
- Mounting Washers: M2
- Part #: TL1A
- Size: 1
- Mounting Compatibility: Bushings Standard Journals
- Overall Height (A): 0.690"
- Overall Length (B): 1.102"
- Overall Width (C): 0.450"
- Holder Length (D): 0.472"
- Slot Diameter (E): 0.120"
- Slot Span (F): 0.787"
- Slot Center (G): 0.180"
- Mounting Surface To Track Vee Min: 0.370"
- Mounting Surface To Track Vee Max: 0.500"
- Mounting Screws: M2 X 0.4 X 5mm
- Mounting Washers: M2
