3030 Taper Lock Bushing X 28mm Bore
Note:
Custom Cut to Length Chain Also Available
$84.99
SKU: 3030-28MM-TAPER-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
3030 Taper Lock Bushing X 28mm Bore Features
3030 Taper Lock Bushing X 28mm Bore Specifications

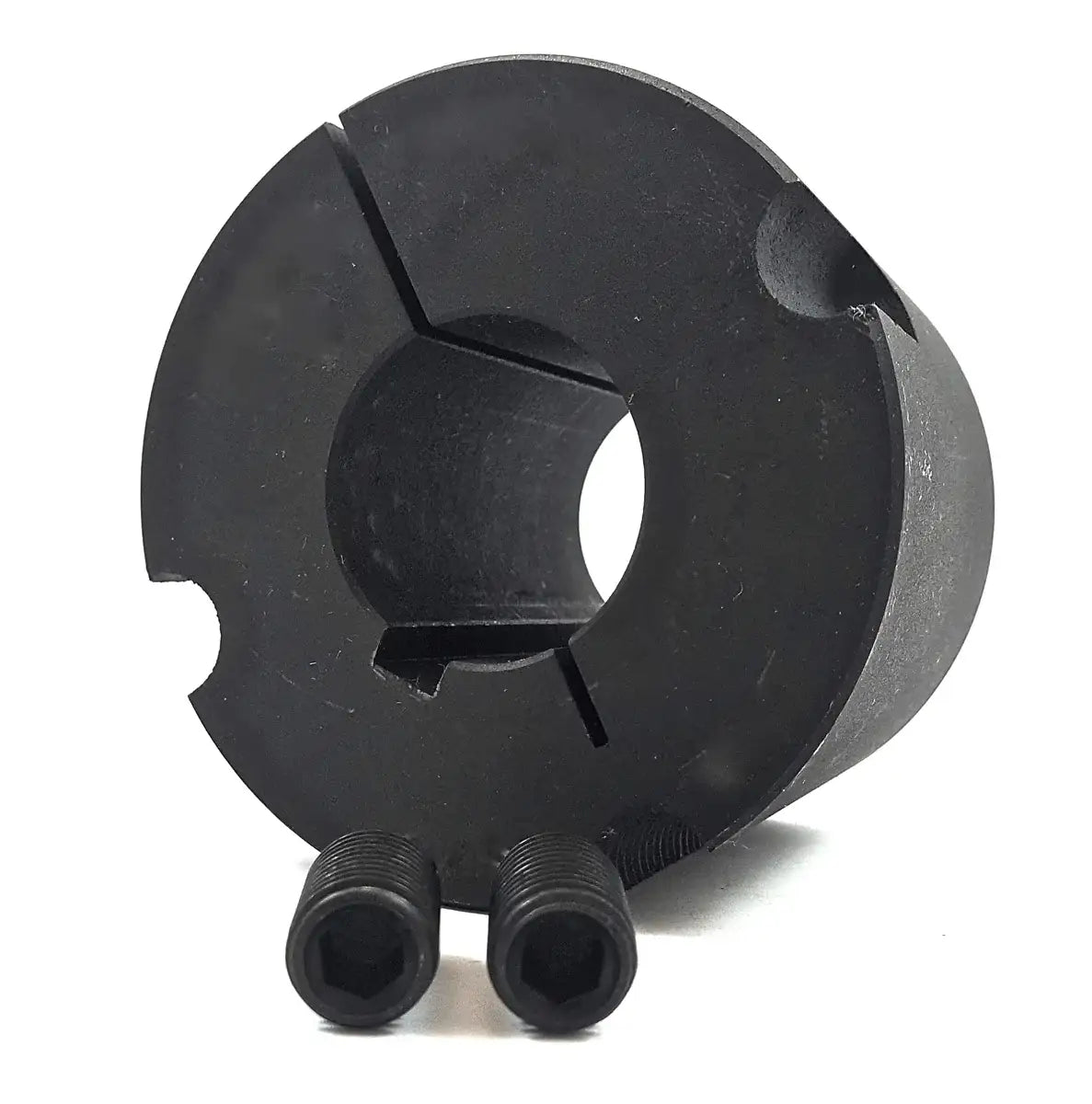

This 3030 taper lock bushing is a high quality, durable, and dependable product that has been precisely manufactured to out-last and out-perform the competition. 3030 taper lock bushings are used in a wide range of applications including; belt pulleys, sprockets, drum pulleys, drive pulleys, tail pulleys, sheaves, and gears, which are items that we also offer! Additionally this bushing features a 28 millimeter bore with a standard keyway, for more information on 3030 taper lock bushings please contact us and we will be happy to assist you.
Dimensions:
Installation
2. Insert bushing into component. Match the hole pattern, not the thread holes (each hole will be threaded on one side only).
3. Thread set or cap screws into those half threaded holes indicated by the
on the below diagram. mount assembly on shaft.
4. Alternately torque set or cap screws* to recommended torque setting in the chart below.
5. Fill all unoccupied holes with grease.
Removal 1. Remove all set or cap screws.
2. Insert set or cap screws in holes indicated by
on the digram above.
3. To re-install, complete all five (5) installation instructions.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
- Bushing Number: 3030
- Bore: 28mm
- Dimension (A): 4-1/4"
- Dimension (B): 3"
- Dimension (D): 4"
- Number Of Set Screws: 2
- Threads: 5/8"
- Length: 1-1/4"
- Wrench Torque: 800 LBS
- Weight: 9.2 LBS
2. Insert bushing into component. Match the hole pattern, not the thread holes (each hole will be threaded on one side only).
3. Thread set or cap screws into those half threaded holes indicated by the
on the below diagram. mount assembly on shaft.4. Alternately torque set or cap screws* to recommended torque setting in the chart below.
5. Fill all unoccupied holes with grease.
2. Insert set or cap screws in holes indicated by
on the digram above.3. To re-install, complete all five (5) installation instructions.
Email:
See What All We Offer "Here"!
- Bushing Number: 3030
- Bore: 28mm
- Dimension (A): 4-1/4"
- Dimension (B): 3"
- Dimension (D): 4"
- Number Of Set Screws: 2
- Threads: 5/8"
- Length: 1-1/4"
- Wrench Torque: 800 LBS
- Weight: 9.2 LBS
