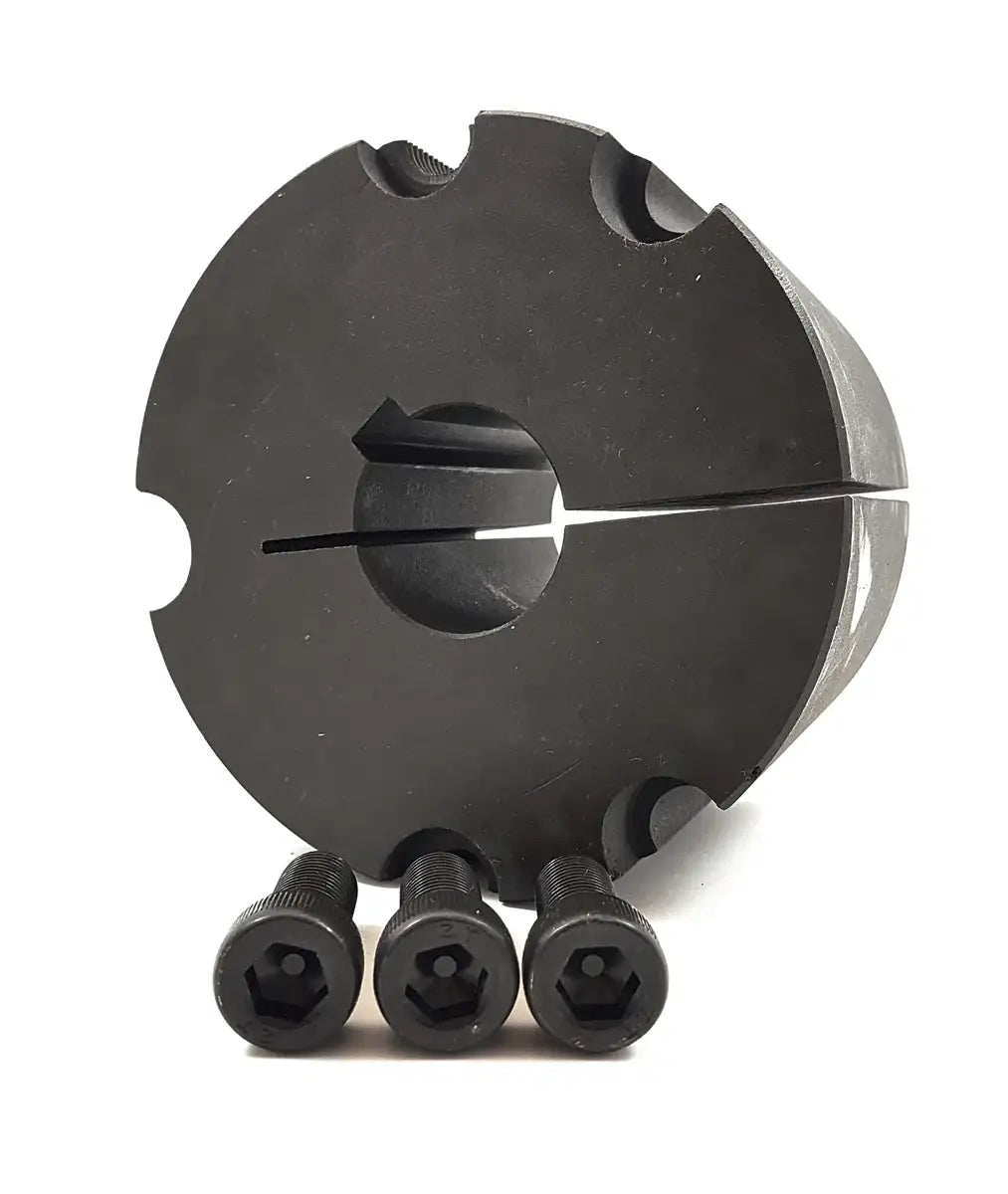

3535 Taper Lock Bushing X 1-1/4" Bore
Note:
Custom Cut to Length Chain Also Available
$109.99
SKU: 3535-1-14-TAPER-BUSHING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
3535 Taper Lock Bushing X 1-1/4" Bore Features
3535 Taper Lock Bushing X 1-1/4" Bore Specifications
This 3535 taper lock bushing is a high quality, durable, and dependable product that has been precisely manufactured to out-last and out-perform the competition. 3535 taper lock bushings are used in a wide range of applications including; belt pulleys, sprockets, drum pulleys, drive pulleys, tail pulleys, sheaves, and gears, which are items that we also offer! Additionally this bushing features a 1-1/4" bore with a standard keyway, for more information on 3535 taper lock bushings please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
- Bushing Number: 3535
- Bore: 1-1/4"
- Dimension (A): 5"
- Dimension (B): 3-1/2"
- Dimension (D): 4.83"
- Number Of Set Screws: 3
- Threads: 1/2"
- Length: 1-1/2"
- Dimension (G): 39°
- Wrench Torque: 1,000 LBS
- Weight: 14 LBS
Phone: (407) 347-3519
Email:
See What All We Offer "Here"!
- Bushing Number: 3535
- Bore: 1-1/4"
- Dimension (A): 5"
- Dimension (B): 3-1/2"
- Dimension (D): 4.83"
- Number Of Set Screws: 3
- Threads: 1/2"
- Length: 1-1/2"
- Dimension (G): 39°
- Wrench Torque: 1,000 LBS
- Weight: 14 LBS
