40B96 ANSI Sprocket 40B96 ANSI Sprocket
Note:
Custom Cut to Length Chain Also Available
$175.99
SKU: 40B96-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40B96 ANSI Sprocket 40B96 ANSI Sprocket Features
40B96 ANSI Sprocket 40B96 ANSI Sprocket Specifications

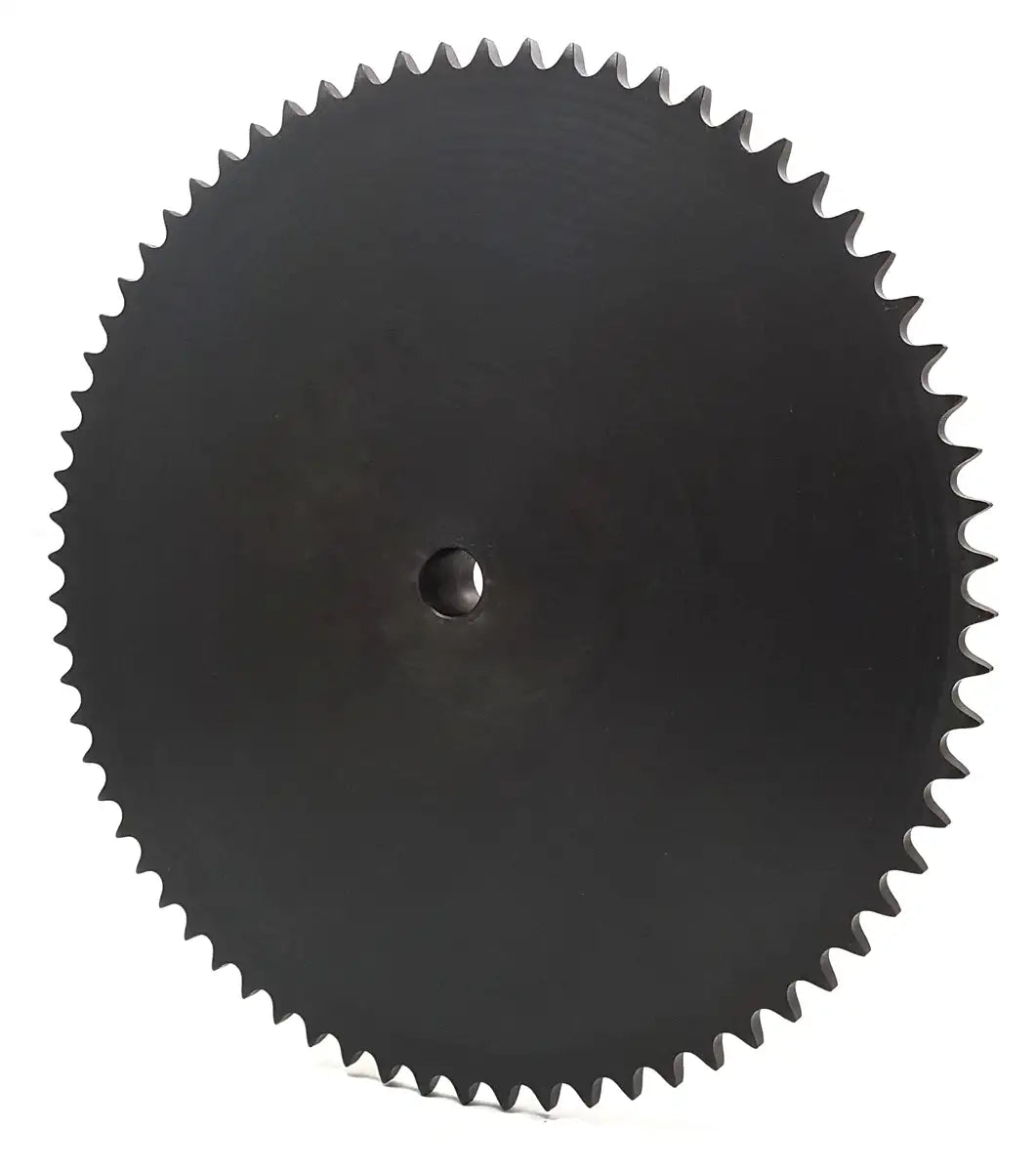

This 40B96 sprocket is a durable, premium quality, and precision sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket which prevents premature wear or breakage. It is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 40B96 sprockets with a stock bore comes with the standard 1" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information, sprocket re-boring, MTO sprockets, or large quantities please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 40B96
- Outside Diameter: 15.570"
- Hub Type: B
- Stock Bore: 1"
- Recommended Max Bore: 2-3/4"
- Hub Diameter: 4"
- Length Through Bore: 1-1/4"
- Weight: 17.56 LBS
Email:
- Sprocket Size: 40B96
- Outside Diameter: 15.570"
- Hub Type: B
- Stock Bore: 1"
- Recommended Max Bore: 2-3/4"
- Hub Diameter: 4"
- Length Through Bore: 1-1/4"
- Weight: 17.56 LBS
