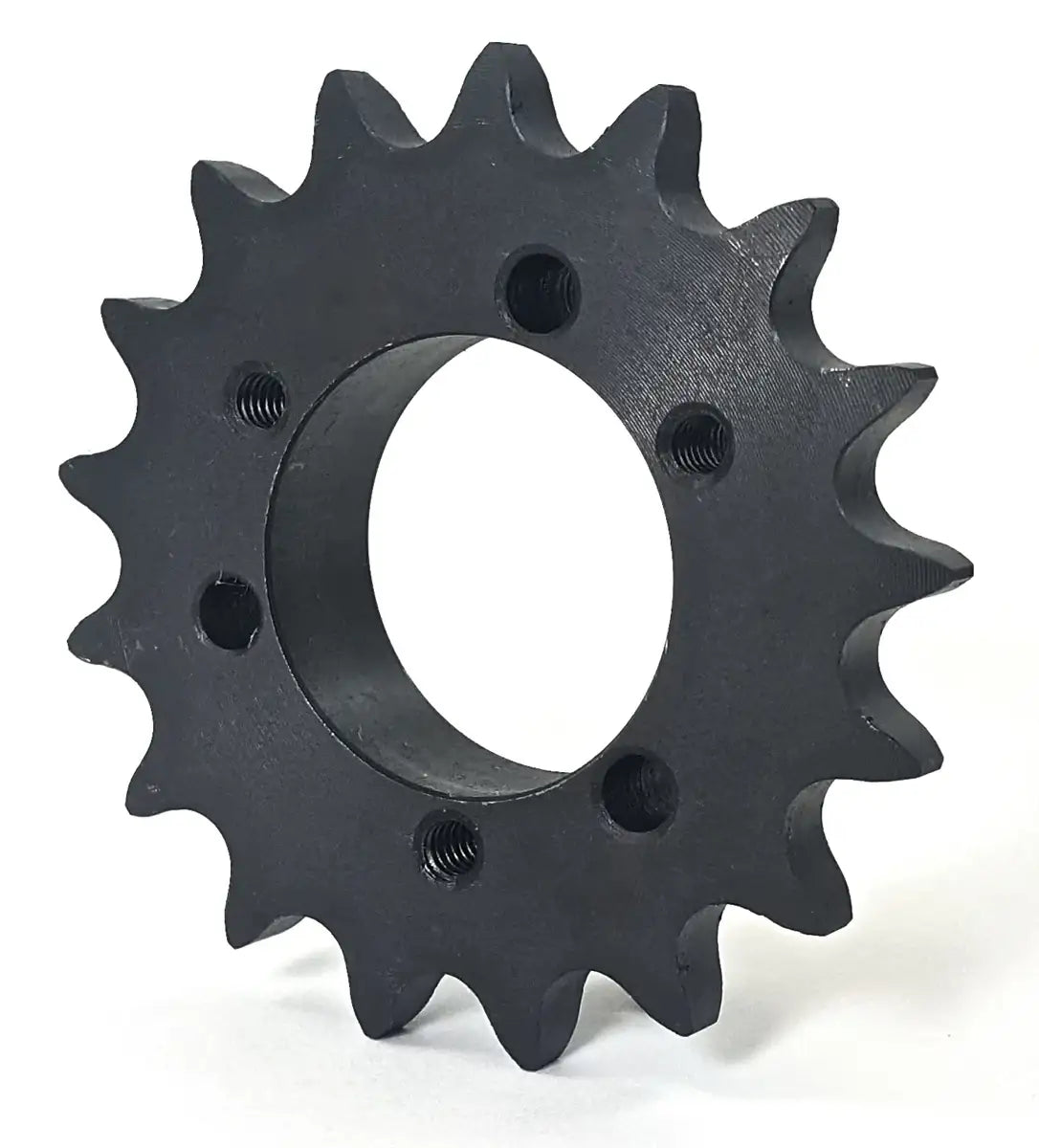

40JA19 Sprocket (QD Type)
Note:
Custom Cut to Length Chain Also Available
$24.99
SKU: 40JA19-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
40JA19 Sprocket (QD Type) Features
40JA19 Sprocket (QD Type) Specifications
This 40JA19 sprocket is a durable, high quality, and precision sprocket with hardened teeth that is manufactured to accept a JA bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket to prevent premature wear or breakage. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 40JA19 sprockets are manufactured to accept a JA type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 40JA19
- Tooth Count: 19
- Bushing Type: JA
- Outside Diameter: 3.300"
- Pitch Diameter: 3.038"
- Sprocket Type: B
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 23/32"
- Dimension (G): 11/32"
- Dimension (X): 5/8"
- Dimension (T): 0.284"
- Sprocket Weight: 0.60 LBS
- Weight With Bushing: 1.50 LBS
Email:
- Sprocket Size: 40JA19
- Tooth Count: 19
- Bushing Type: JA
- Outside Diameter: 3.300"
- Pitch Diameter: 3.038"
- Sprocket Type: B
- Dimension (L1): 1-1/8"
- Dimension (L2): 1-1/8"
- Dimension (C): 2-1/16"
- Dimension (Y): 23/32"
- Dimension (G): 11/32"
- Dimension (X): 5/8"
- Dimension (T): 0.284"
- Sprocket Weight: 0.60 LBS
- Weight With Bushing: 1.50 LBS
