By Application > Mining Chain & Sprockets > Shuttle Car Mining Chain
4100SUSC Super 4 Shuttle Car Chain - Mining Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 4100SUSC-SHUTTLE-CAR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
4100SUSC Super 4 Shuttle Car Chain - Mining Chain Features
4100SUSC Super 4 Shuttle Car Chain - Mining Chain Specifications
C4100 shuttle car chain is a super 4 shuttle car mining chain with a 4.100" pitch. This chain is manufactured from superior materials with specific processes done throughout to improve strength, wear life, and performance. C4100 chain is used in mining equipment that transfers mined materials from the mine work face; this environment is particularly demanding and abrasive. With standard use, there are two sections of chains that operate parallel to each other with cross sections/ slats that carry the mined materials. Our C4100 mining chain directly interchanges with other brands and manufacturers; for additional information or to get a quote contact our customer support team, and we will gladly assist you!

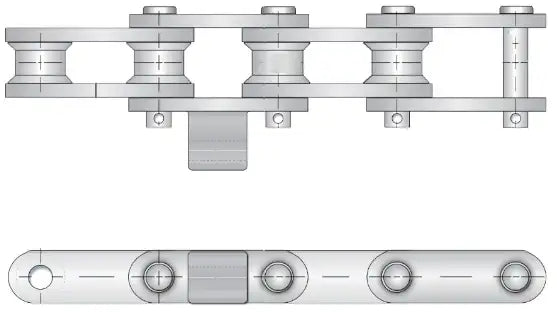

C4100 Chain Dimensions
- Chain Size: 4100SUSC
- Pitch (P): 4.100"
- Plate Height (H): 1.750"
- Plate Thickness (T): 0.500"
- Pin diameter (N): 0.938"
- Pin Length (Y): 4.310"
- Dimension (O): 0.672"
- Dimension (G): 2.000"
- Weight: 11.45 LBS/ Ft
- Chain Size: 4100SUSC
- Pitch (P): 4.100"
- Plate Height (H): 1.750"
- Plate Thickness (T): 0.500"
- Pin diameter (N): 0.938"
- Pin Length (Y): 4.310"
- Dimension (O): 0.672"
- Dimension (G): 2.000"
- Weight: 11.45 LBS/ Ft
