Specialty Chain > Pintle Chain > 400 Class Pintle Chain > 4124 Pintle Chain
4124 Pintle Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 4124-PINTLE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
4124 Pintle Chain Features
4124 Pintle Chain Specifications

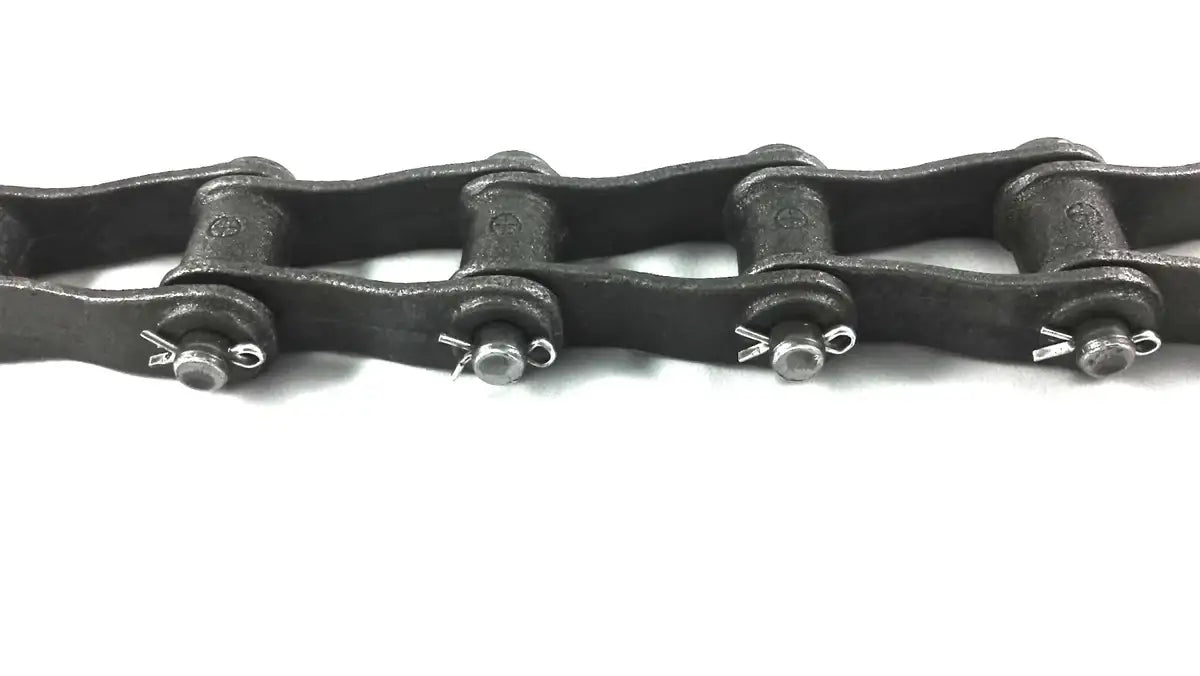

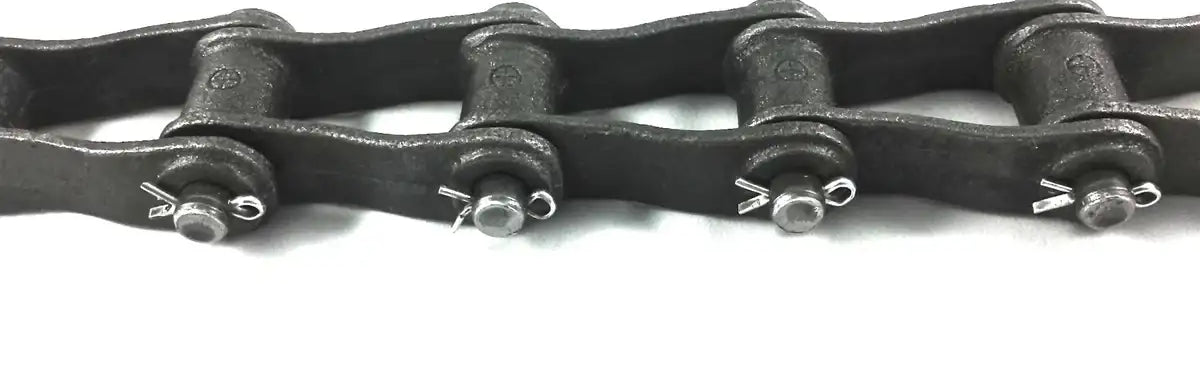

4124 Pintle Chain
4124 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 4124 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 4124 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 4124 pintle chain attachments and 4124 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
4124 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 4124 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 4124 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 4124 pintle chain attachments and 4124 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: 4124 Pintle Chain
- Pitch: 4.06"
- Links Per 10ft: 30
- Weight Per Foot: 8.50 LBS
- Average Ultimate Strength: 33,000 LBS
- Maximum Allowable Sprocket Face (A): 1.25"
- Overall Width Cottered (C): 4.59"
- Overall Width Riveted: 4.34"
- Pin Diameter (E): 0.81"
- Sidebar Height (F): 1.75"
Phone: (407) 347-3519
Email:
- Chain Size: 4124 Pintle Chain
- Pitch: 4.06"
- Links Per 10ft: 30
- Weight Per Foot: 8.50 LBS
- Average Ultimate Strength: 33,000 LBS
- Maximum Allowable Sprocket Face (A): 1.25"
- Overall Width Cottered (C): 4.59"
- Overall Width Riveted: 4.34"
- Pin Diameter (E): 0.81"
- Sidebar Height (F): 1.75"
