452 Pintle Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 452-PINTLE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
452 Pintle Chain Features
452 Pintle Chain Specifications
452 Pintle Chain

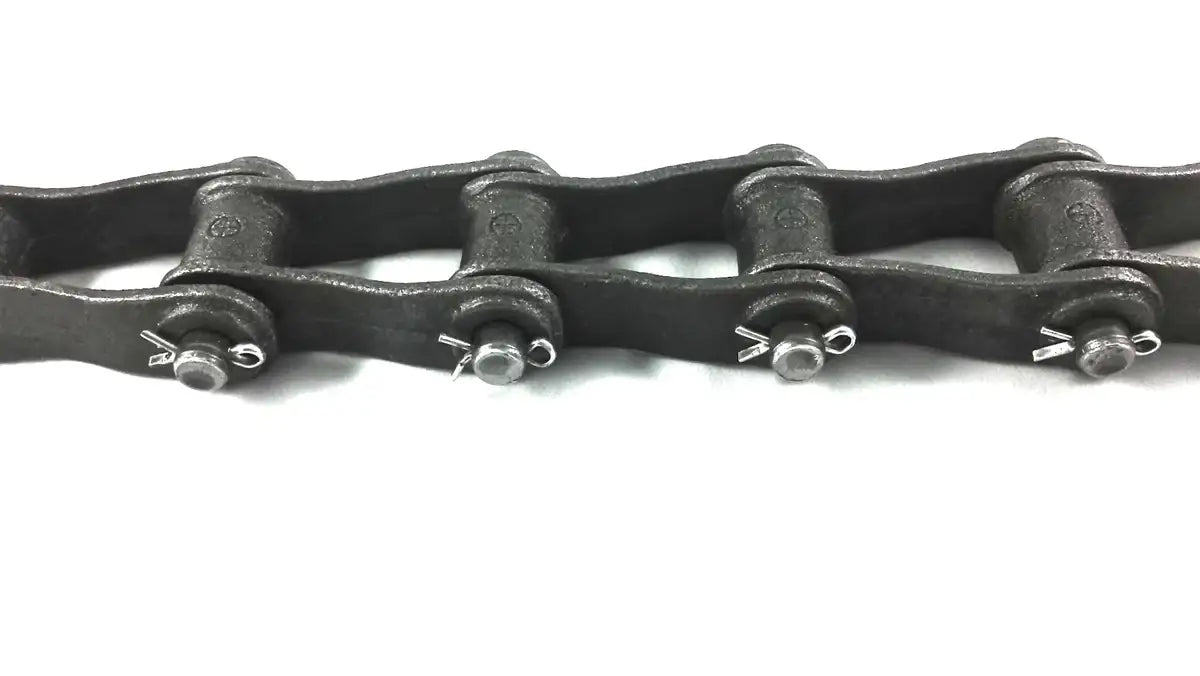

452 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 452 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 452 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 452 pintle chain attachments and 452 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
452 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 452 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 452 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 452 pintle chain attachments and 452 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: 452 Pintle Chain
- Pitch: 1.506"
- Links Per 10ft: 80
- Weight Per Foot: 2.0 LBS
- Average Ultimate Strength: 9,100 LBS
- Maximum Recommended Working Load: 1,250 LBS
- Maximum Allowable Sprocket Face (A): 0.62"
- Overall Width Cottered (C): 2.22"
- Overall Width Riveted: 2.06"
- Pin Diameter (E): 0.38"
- Sidebar Height (F): 0.84"
- Barrel Diameter (H): 0.69"
- Head of Pin to Center Line (J): 1.03"
- End of Pin To Center Line Cottered (K): 1.19"
- End of Pin To Center Line Riveted (L): 1.03"
- Length of Bearing (X): 1.09"
Phone: (407) 347-3519
Email:
- Chain Size: 452 Pintle Chain
- Pitch: 1.506"
- Links Per 10ft: 80
- Weight Per Foot: 2.0 LBS
- Average Ultimate Strength: 9,100 LBS
- Maximum Recommended Working Load: 1,250 LBS
- Maximum Allowable Sprocket Face (A): 0.62"
- Overall Width Cottered (C): 2.22"
- Overall Width Riveted: 2.06"
- Pin Diameter (E): 0.38"
- Sidebar Height (F): 0.84"
- Barrel Diameter (H): 0.69"
- Head of Pin to Center Line (J): 1.03"
- End of Pin To Center Line Cottered (K): 1.19"
- End of Pin To Center Line Riveted (L): 1.03"
- Length of Bearing (X): 1.09"
