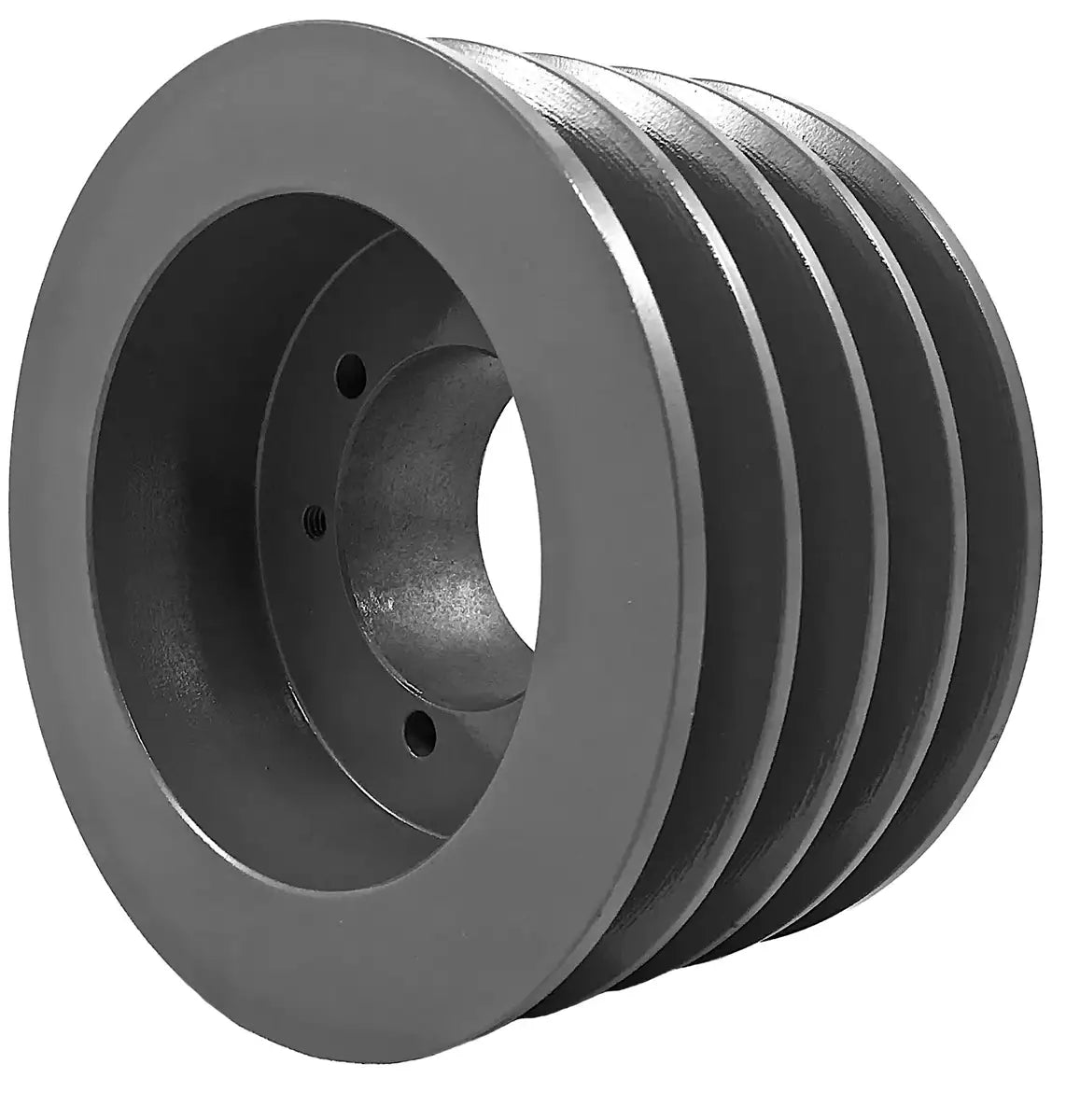

4B52SD Sheave four-groove 5.55" OD

This 4B52SD sheave features four grooves, is 5.55" in diameter, and is designed to use a SD bushing. QD (quick detachable) style sheaves offer a wider selection of bore sizes versus a standard "fixed" bore style sheave. Also because they are a two-component part if one component fails the entire part doesn't need to be replaced. All of our sheaves are manufactured out of an extremely durable cast iron, are dynamically balanced at the factory, and are phosphated then painted for corrosion resistance. Additionally, we stock a full line of premium A, 4L, B, 5L, AX, BX, AA, and BB belts, SD bushings, shafting, key-stock, motors, gearboxes, bearings, and much more!

4B52SD Sheave Dimensions

• Size: 4B52SD
• Bushing Type: SD
• Bore Range: 1/2" - 2"
• Type: A
• Pitch Diameter (B/ 5L): 5.2"
• Pitch Diameter (A/ 4L): 4.8"
• Outside Diameter (O.D.): 5.55"
• Dimension (E): 21/32"
• Dimension (F): 3-1/4"
• Dimension (L): 1-13/16"
• Dimension (M): 25/32"
• Sheave Weight: 8.8 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For additional information or to get pricing and availability on a 4B52SD sheave, please contact us and we will be happy to assist you.
