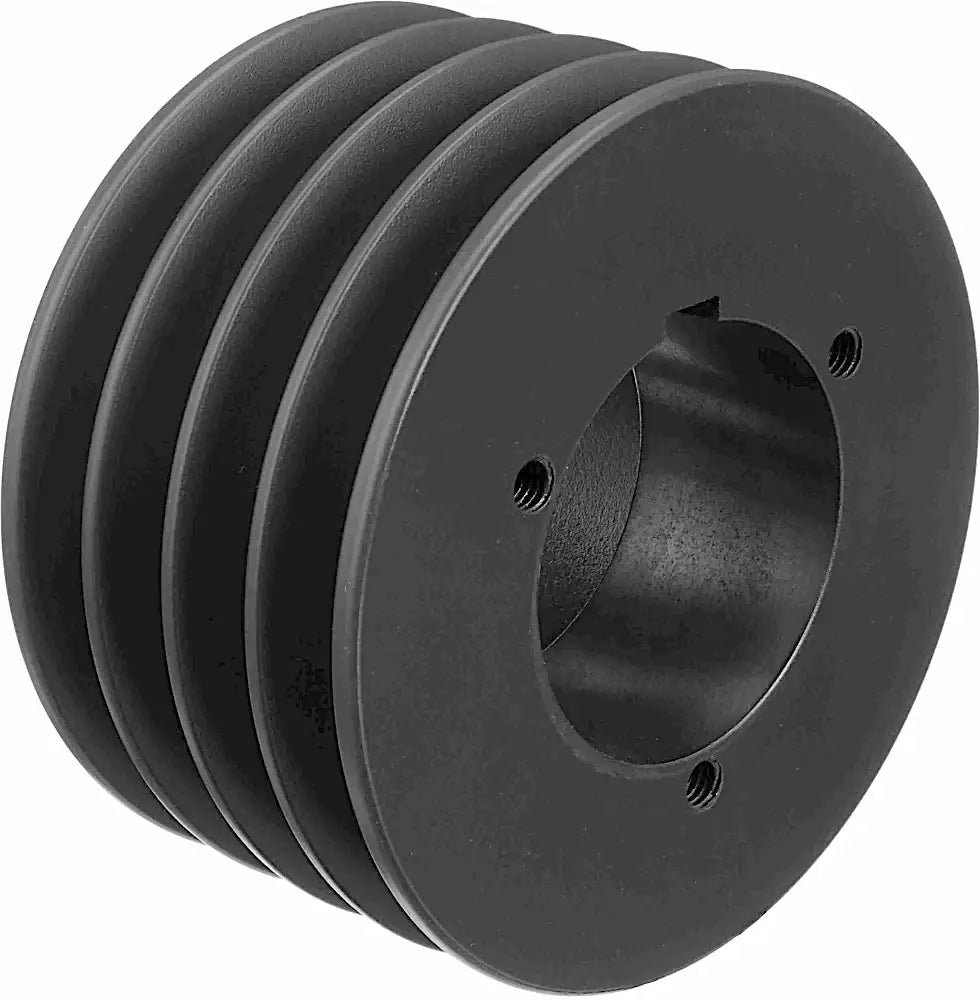

4B68Q Sheave four-groove 7.15" OD

This 4B68Q sheave features four grooves, is 7.15" in diameter, and is designed to use a Q1 bushing. Split Taper style sheaves offer a wider selection of bore sizes versus a standard "fixed" bore style sheave. Also because they are a two-component part if one component fails the entire part doesn't need to be replaced. All of our sheaves are manufactured out of an extremely durable cast iron, are dynamically balanced at the factory, and are phosphated then painted for corrosion resistance. Additionally, we stock a full line of premium A, 4L, B, 5L, AX, BX, AA, and BB belts, Q1-Bushings, shafting, key-stock, motors, gearboxes, bearings, and much more!

4B68Q Sheave Dimensions

• Size: 4B68Q
• Bushing Type Needed: Q1
• Pitch Diameter (A/ 4L): 6.4"
• Pitch Diameter (B/ 5L): 6.8"
• Outside Diameter: 7.15"
• Inside Diameter: 5-1/4"
• Type: 13
• Overall Width (O.L.): 3-17/32"
• Dimension (L): 2-1/2"
• Dimension (P): 0"
• Dimension (C): 3/4"
• Dimension (H): 4-1/8"
• Dimension (F): 3-1/4"
• Dimension (G): 3/4"
• Dimension (X): 1-3/4"
• Dimension (E): 9/32"
• Sheave Weight: 16.9 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For additional information or to get pricing and availability on a 4B68Q sheave, please contact us and we will be happy to assist you.
