50B56 Sprocket With Stock Bore

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 50 Roller Chain Sprockets > #50 B-Hub Sprockets > 50B56 Sprockets

50B56 Sprocket Stock Bore ANSI 50B56

Note: Custom Cut to Length Chain Also Available
$109.99
SKU: 50B56-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714619310447" , "metafield_value":""}]
50B56 Sprocket Stock Bore ANSI 50B56 Features
50B56 Sprocket Stock Bore ANSI 50B56 Specifications

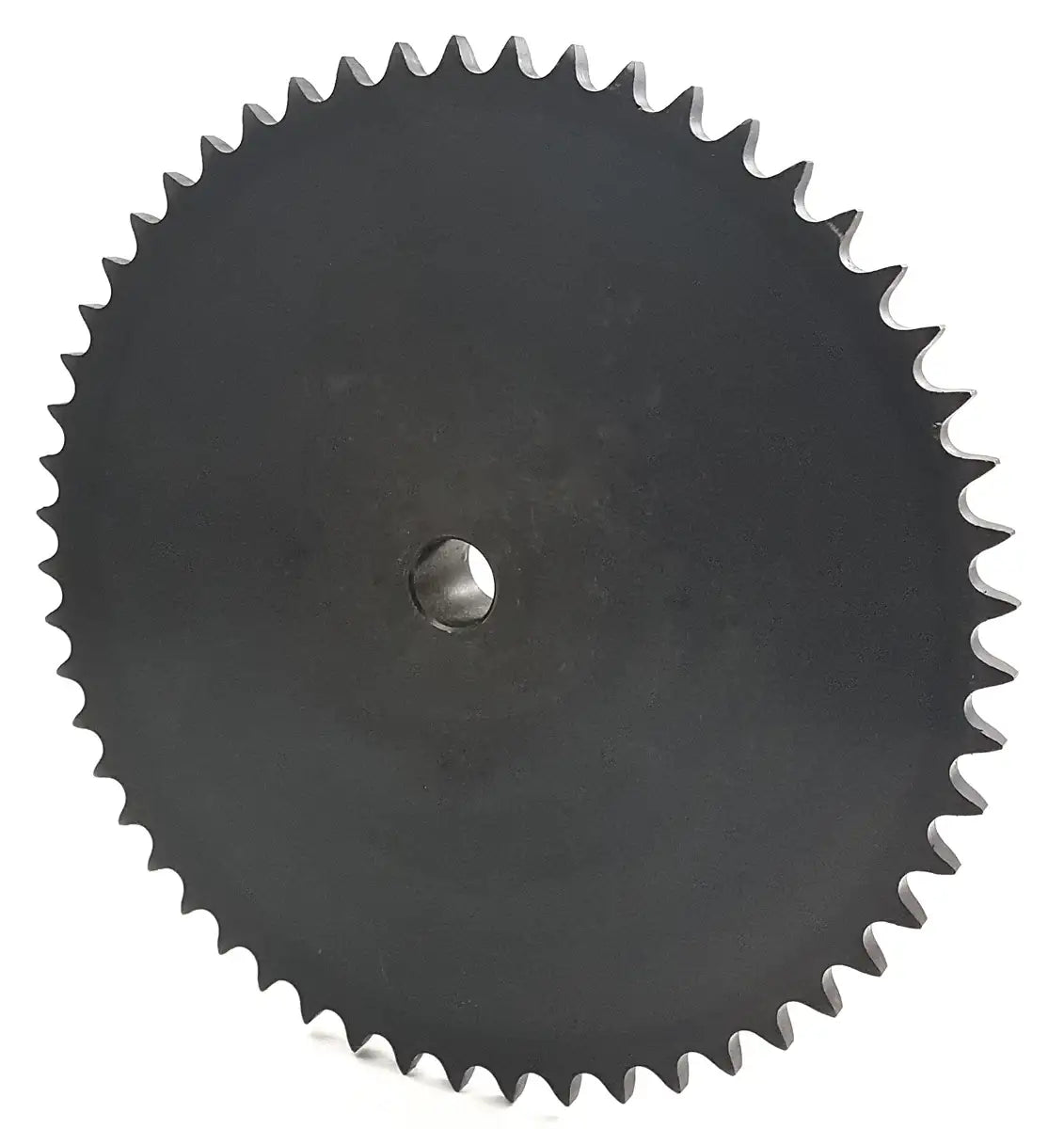

This 50B56 sprocket is a durable, premium quality, and precision 56-tooth sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket, preventing premature wear or breakage. It is also black oxide coated which increases the sprockets overall resistance to the environment along with preventing early rust build up. 50B56 sprockets with a stock bore comes with the standard 1" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information, sprocket re-boring, MTO sprockets, or large quantities please contact us and we will be happy to assist you.

50B56 Sprocket Dimensions


50B56 Sprocket With Stock Bore
  • Sprocket Size: 50B56
  • Tooth Count: 56
  • Outside Diameter: 11.500"
  • Hub Type: B
  • Bore Size: 1"
  • Recommended Maximum: 2-1/2"
  • Hub Diameter: 3-3/4"
  • Length Thru Bore: 1-1/4"
  • Sprocket Weight: 11.50 LBS
  • Common Interchanges: 50B56H, H50B56, 50B56-SB

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: 50B56
  • Tooth Count: 56
  • Outside Diameter: 11.500"
  • Hub Type: B
  • Bore Size: 1"
  • Recommended Maximum: 2-1/2"
  • Hub Diameter: 3-3/4"
  • Length Thru Bore: 1-1/4"
  • Sprocket Weight: 11.50 LBS
  • Common Interchanges: 50B56H, H50B56, 50B56-SB
