50BS53 Sprocket With 1-7/16" Finished Bore

Name: 50BS53 Sprocket With 1-7/16" Finished Bore
Brand: USA ROLLER CHAIN
SKU: 50BS53-1-716-SPROCKET
Price: 120.99 USD
Availability: InStock

Note: Custom Cut to Length Chain Also Available

$120.99

SKU: 50BS53-1-716-SPROCKET

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Don’t see what you need?

Call us

Buy it With:

50BS53 Sprocket With 1-7/16" Finished Bore Features

50BS53 Sprocket With 1-7/16" Finished Bore Specifications

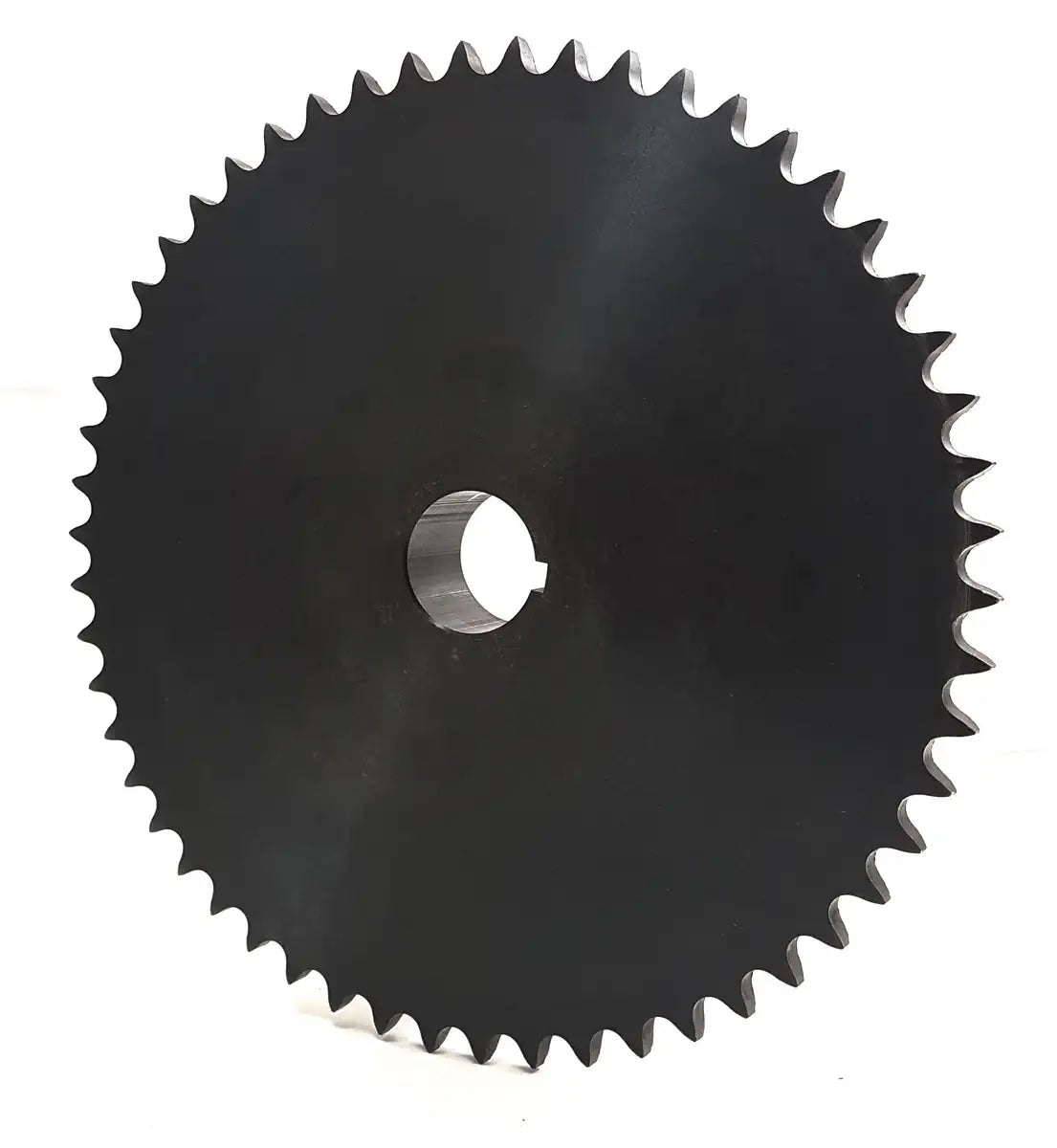

This 50BS53 sprocket features a 1-7/16" finished bore including a key-way and two setscrews. It is a durable, high quality, and precision sprocket that fully meets all ANSI Standards which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of ANSI #50 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.

50BS53 1 7/16" Finished Bore Sprocket Dimensions

Sprocket Size: 50BS53

Tooth Count: 53

Outside Diameter: 10.910"

Hub Type: B

Bore Size: 1-7/16"

Keyway Size: 3/8" X 3/16"

Hub Diameter: 3-3/4"

Length Thru Bore: 1-1/4"

Sprocket Weight: 10.48 LBS

Common Interchanges: 50BS53H, H50BS53, 50BS53-FB
