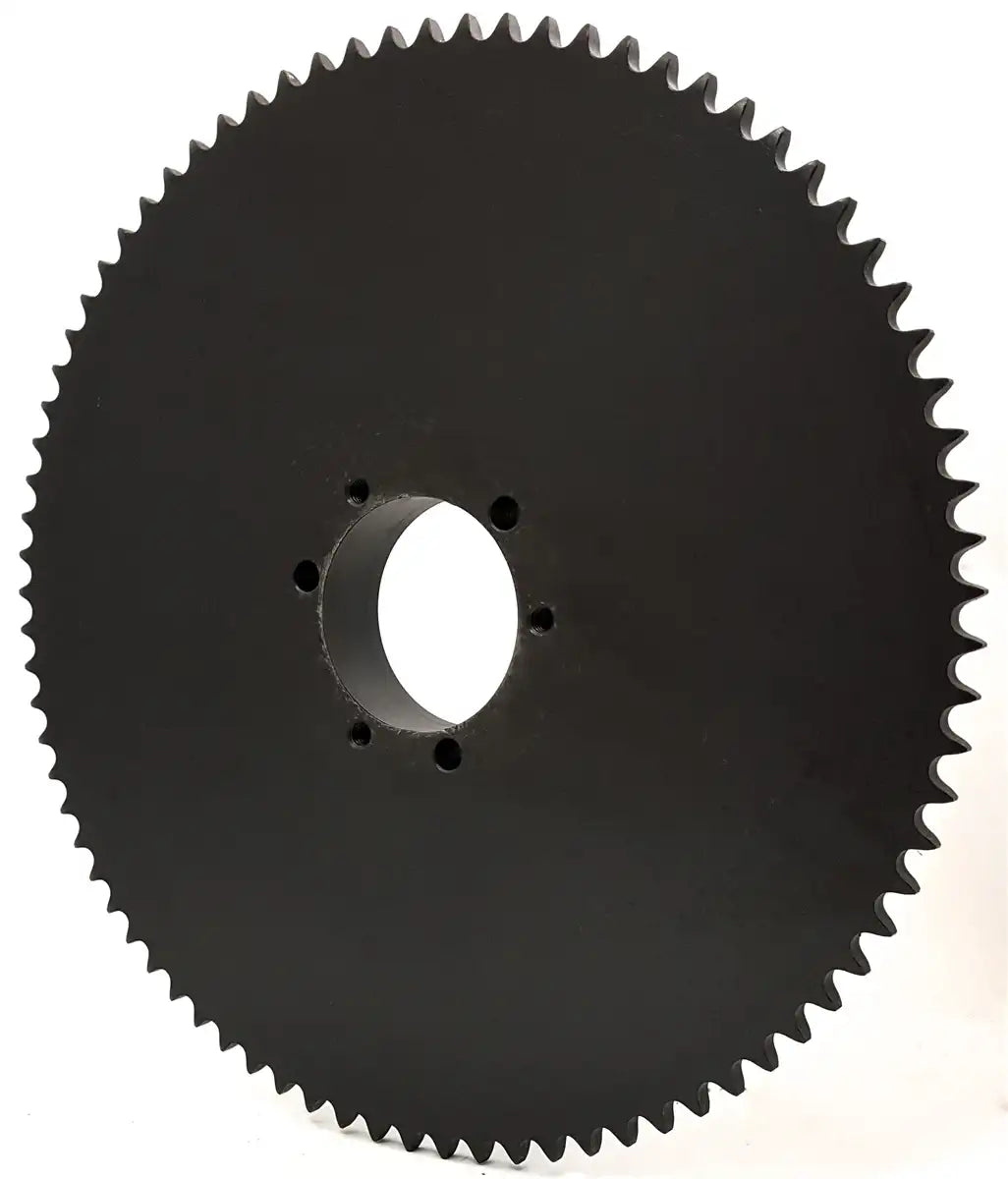

50SF84 Sprocket (QD Type)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 50 Roller Chain Sprockets > #50 SF Type Sprockets

50SF84 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$304.99
SKU: 50SF84-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714643689839" , "metafield_value":""}]
50SF84 Sprocket (QD Type) Features
50SF84 Sprocket (QD Type) Specifications
This 50SF84 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept an SF bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket . This also prevents premature wear or breakage and means that the sprocket will directly interchange with other manufactures sprockets. This sprocket is also black oxide coated thus increasing resistance to the environment and will prevent early corrosion. 50SF84 sprockets are manufactured to accept a SF type QD bushing which, we also stock with a wide range of bore sizes. Additionally offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

50SF84 Sprocket Dimensions

50SF84 Sprocket (QD Type)
  • Sprocket Size: 50SF84
  • Tooth Count: 84
  • Bushing Size: SF
  • Outside Diameter: 17.080"
  • Pitch Diameter: 16.715"
  • Dimension (L1): 2-1/4"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 1-21/32"
  • Dimension (G): 29/32"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.343"
  • Bushing Weight: 3 LBS
  • Sprocket Weight: 22.98 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: 50SF84
  • Tooth Count: 84
  • Bushing Size: SF
  • Outside Diameter: 17.080"
  • Pitch Diameter: 16.715"
  • Dimension (L1): 2-1/4"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 1-21/32"
  • Dimension (G): 29/32"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.343"
  • Bushing Weight: 3 LBS
  • Sprocket Weight: 22.98 LBS
