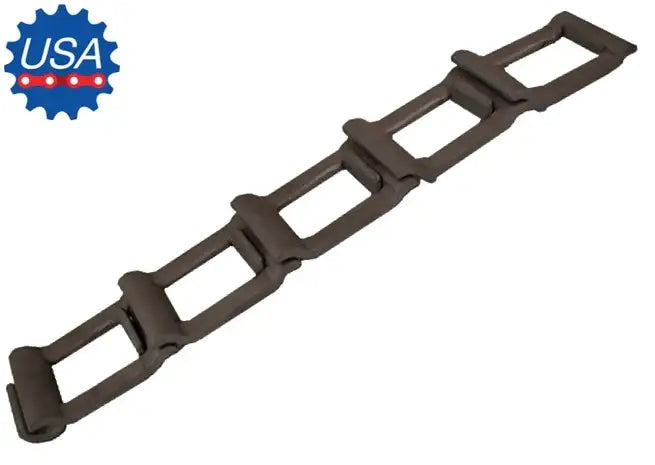

52 Steel Detachable Chain 10ft Coil
Note:
Custom Cut to Length Chain Also Available
SKU: 52-SDC-DETACHABLE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
52 Steel Detachable Chain 10ft Coil Features
52 Steel Detachable Chain 10ft Coil Specifications
This 52 steel detachable chain is manufactured from a special hot-rolled strip steel that is heat-treated for increased strength and a longer wear life. The steel detachable chains that we supply are typically supplied as 10ft coils and can come as a painted or non-painted configuration. Size 52 steel detachable chain is manufactured for moderate loads and speeds, it is also extremely easy to replace and repair. When installing and using detachable chain it is important that the closed end of the tab should always be towards the sprocket. Besides of the chain we can also supply detachable chain sprockets, attachments, shafting, bearings, and much more! For more information or to get pricing and availability please contact us and we will be happy to assist you.
52 Steel Detachable chain Dimensions
- Pitch (P): 1.508"
- Dimension (M): 1.406"
- Dimension (E): 0.760"
- Dimension (D): 0.840"
- Dimension (T): 0.125"
- Average Ultimate Strength: 2,700 LBS
- Links Per 10ft: 80 LBS
- Weight Per 10ft: 6.6 LBS
- Tolerance on Thickness: +/- 0.006"
- Pitch (P): 1.508"
- Dimension (M): 1.406"
- Dimension (E): 0.760"
- Dimension (D): 0.840"
- Dimension (T): 0.125"
- Average Ultimate Strength: 2,700 LBS
- Links Per 10ft: 80 LBS
- Weight Per 10ft: 6.6 LBS
- Tolerance on Thickness: +/- 0.006"
