CSA730MFM205-15 Stamped Steel 2-Bolt Flange Bearing | Vibration Damping

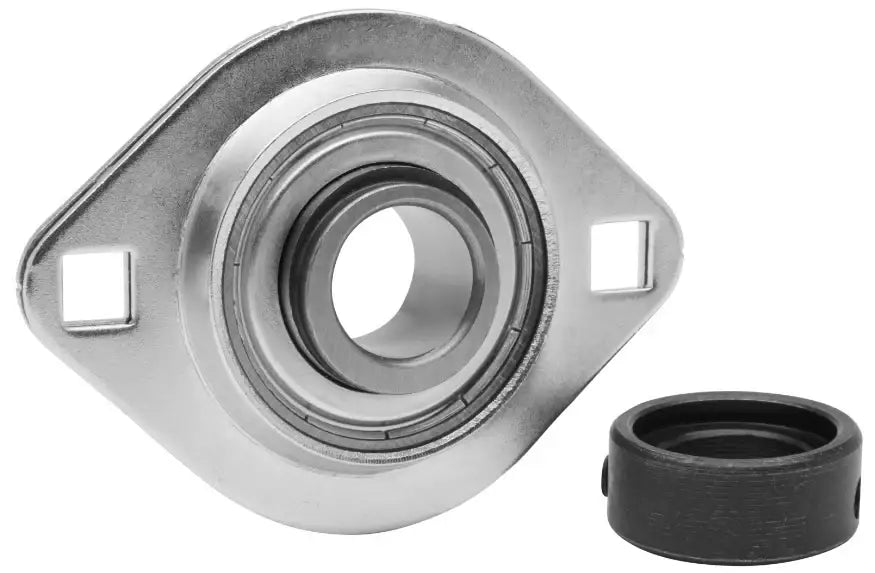

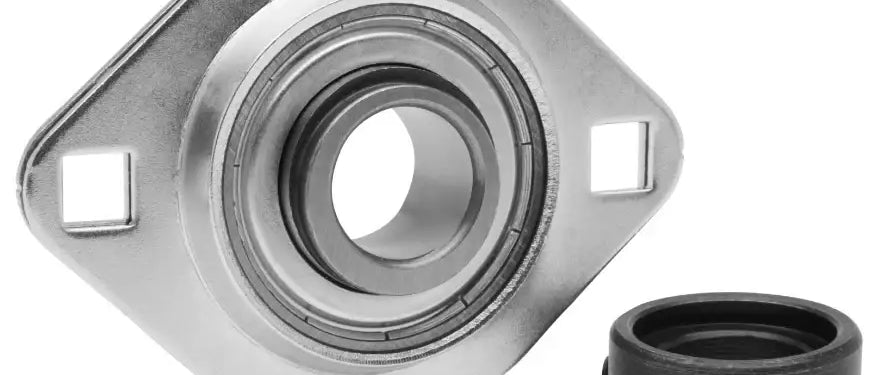

CSA730MFM205-15 stamped steel bearing is a 2-bolt vibration-damping flush mount flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 15/16" insert bearing that utilises an eccentric locking collar for securing onto a shaft. The bearing unit features a rubber cushion made from high-quality rubber for decreasing vibration. CSA730MFM205-15 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the CSA730MFM205-15 15/16" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our CSA730MFM205-15 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our flush mount CSA730MFM205-15 bearing, contact our customer support team, and we will be happy to assist you!

CSA730MFM205-15 Bearing Dimensions

• Bearing Unit Part #: CSA730MFM205-15
• Bearing I.D: 15/16"
• Dimension (a): 4-1/2"
• Dimension (e): 3-3/8"
• Dimension (b): 2-1/2"
• Dimension (D): 29/64"
• Dimension (E): 3/4"
• Dimension (L): 1.220"
• Bolt Size: 5/16"
• Bearing Part #: CSA205-15
• Housing With Rubber Insert Part #: 730-2-MFM
• Weight: 0.50 LBS
