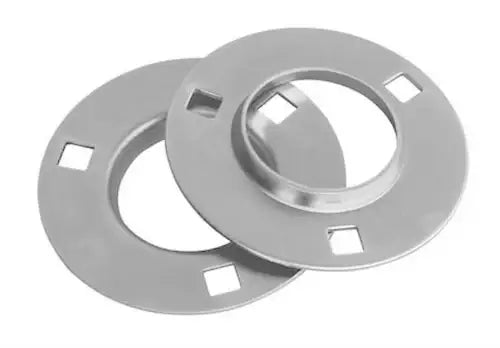

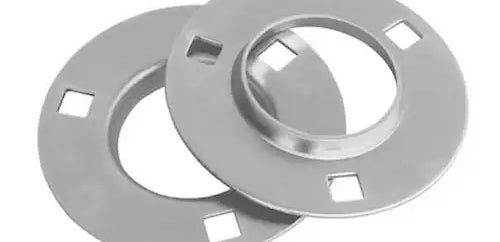

PF203 Stamped Steel 3-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$6.84
SKU: 5652-PF203-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF203 Stamped Steel 3-Bolt Flange Bearing Housing Features
PF203 Stamped Steel 3-Bolt Flange Bearing Housing Specifications
PF203 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt flange bearing housing. Our PF203 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF203 flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF203 housings, contact our customer support team, and we will be happy to assist you!
PF203 Housing Dimensions
- Part #: PF203
- For Shaft Diameters: 1/2" , 5/8"
- Min. Frame Opening (A): 1-15/16"
- Flange Dia. (B): 3-3/16"
- Flange Shoulder Width (C): 9/16"
- Stock Thickness (G): 0.075"
- Bolt Size: 1/4
- Bolt Hole Circle Dia. (D): 2-1/2"
- Hole Width: 9/32"
- Fafnir Part #: 40MS
- SKF Part #: F-40
- Part #: PF203
- For Shaft Diameters: 1/2" , 5/8"
- Min. Frame Opening (A): 1-15/16"
- Flange Dia. (B): 3-3/16"
- Flange Shoulder Width (C): 9/16"
- Stock Thickness (G): 0.075"
- Bolt Size: 1/4
- Bolt Hole Circle Dia. (D): 2-1/2"
- Hole Width: 9/32"
- Fafnir Part #: 40MS
- SKF Part #: F-40
