Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings

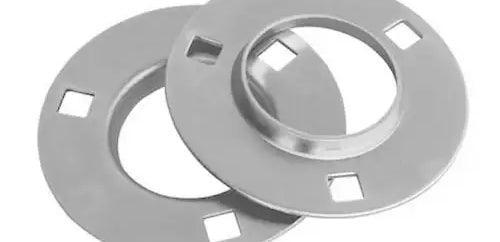

PF208G Stamped Steel 4-Bolt Flange Bearing Housing - Greasable
Note:
Custom Cut to Length Chain Also Available
$37.92
SKU: 5652-PF208G-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF208G Stamped Steel 4-Bolt Flange Bearing Housing - Greasable Features
PF208G Stamped Steel 4-Bolt Flange Bearing Housing - Greasable Specifications

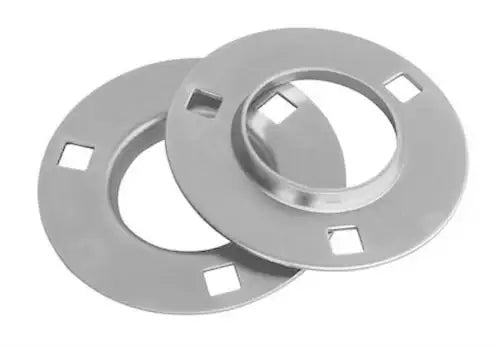

PF208G bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 4-bolt flange bearing housing. Our PF208G housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF208G flange bearing housing that will impress. Four-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF208G housings, contact our customer support team, and we will be happy to assist you!
PF208G Housing Dimensions
- Part #: PF208G
- For Shaft Diameters: 1-1/2", 1-9/16"
- Min. Frame Opening (A): 3-9/16"
- Flange Dia. (B): 5-13/16"
- Flange Shoulder Width (C): 13/16"
- Stock Thickness (G): 0.134"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 4-11/16"
- Hole Width: 17/32"
- Fafnir Part #: 80MS
- SKF Part #: F-80
- MRC Part #: 80MS
- New Departure Part #: FL-80
- Part #: PF208G
- For Shaft Diameters: 1-1/2", 1-9/16"
- Min. Frame Opening (A): 3-9/16"
- Flange Dia. (B): 5-13/16"
- Flange Shoulder Width (C): 13/16"
- Stock Thickness (G): 0.134"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 4-11/16"
- Hole Width: 17/32"
- Fafnir Part #: 80MS
- SKF Part #: F-80
- MRC Part #: 80MS
- New Departure Part #: FL-80
