Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings

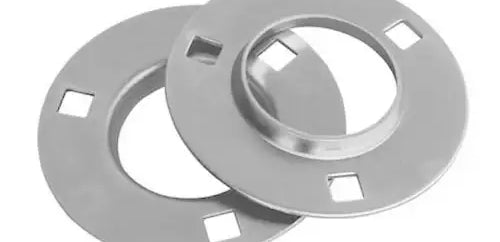

PF209G Stamped Steel 4-Bolt Flange Bearing Housing - Greasable
Note:
Custom Cut to Length Chain Also Available
$40.77
SKU: 5652-PF209G-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF209G Stamped Steel 4-Bolt Flange Bearing Housing - Greasable Features
PF209G Stamped Steel 4-Bolt Flange Bearing Housing - Greasable Specifications

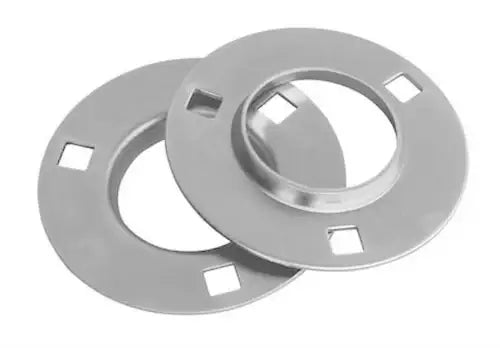

PF209G bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 4-bolt flange bearing housing. Our PF209G housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF209G flange bearing housing that will impress. Four-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF209G housings, contact our customer support team, and we will be happy to assist you!
PF209G Housing Dimensions
- Part #: PF209G
- For Shaft Diameters: 1-5/8", 1-11/16", 1-3/4"
- Min. Frame Opening (A): 3-13/16"
- Flange Dia. (B): 5-7/8"
- Flange Shoulder Width (C): 7/8"
- Stock Thickness (G): 0.134"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 4-3/4"
- Hole Width: 17/32"
- Fafnir Part #: 85MS
- SKF Part #: F-85
- MRC Part #: 85MS
- New Departure Part #: FL85
- Part #: PF209G
- For Shaft Diameters: 1-5/8", 1-11/16", 1-3/4"
- Min. Frame Opening (A): 3-13/16"
- Flange Dia. (B): 5-7/8"
- Flange Shoulder Width (C): 7/8"
- Stock Thickness (G): 0.134"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 4-3/4"
- Hole Width: 17/32"
- Fafnir Part #: 85MS
- SKF Part #: F-85
- MRC Part #: 85MS
- New Departure Part #: FL85
