Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings

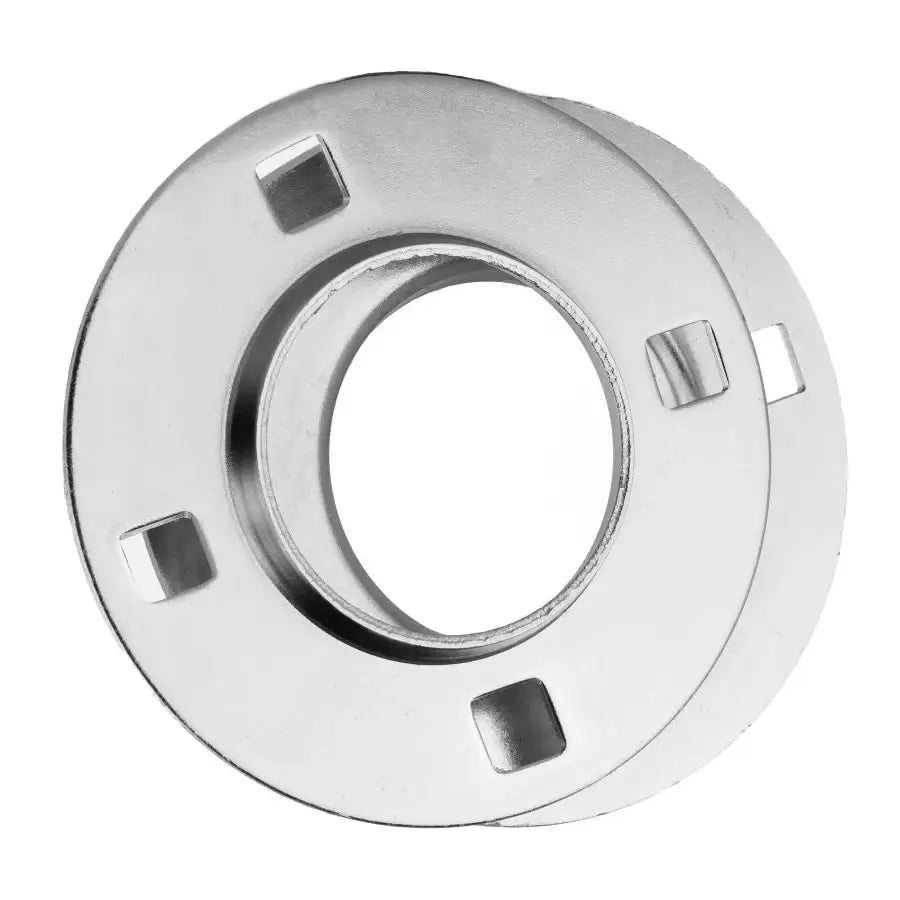

PF210 Stamped Steel 4-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$27.21
SKU: 5652-PF210-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PF210 Stamped Steel 4-Bolt Flange Bearing Housing Features
PF210 Stamped Steel 4-Bolt Flange Bearing Housing Specifications
PF210 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 4-bolt flange bearing housing. Our PF210 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PF210 flange bearing housing that will impress. Four-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PF210 housings, contact our customer support team, and we will be happy to assist you!
PF210 Housing Dimensions
- Part #: PF210
- For Shaft Diameters: 1-13/16", 1-7/8", 1-15/16" , 2"
- Min. Frame Opening (A): 4"
- Flange Dia. (B): 6-1/8"
- Flange Shoulder Width (C): 7/8"
- Stock Thickness (G): 0.149"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 5"
- Hole Width: 17/32"
- Fafnir Part #: 90MS
- SKF Part #: F-90
- MRC Part #: 90MS
- New Departure Part #: FL90
- Part #: PF210
- For Shaft Diameters: 1-13/16", 1-7/8", 1-15/16" , 2"
- Min. Frame Opening (A): 4"
- Flange Dia. (B): 6-1/8"
- Flange Shoulder Width (C): 7/8"
- Stock Thickness (G): 0.149"
- Bolt Size: 1/2"
- Bolt Hole Circle Dia. (D): 5"
- Hole Width: 17/32"
- Fafnir Part #: 90MS
- SKF Part #: F-90
- MRC Part #: 90MS
- New Departure Part #: FL90
