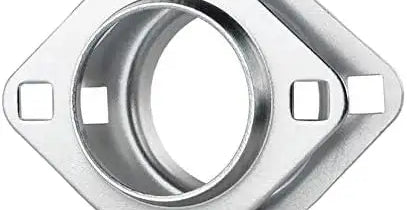

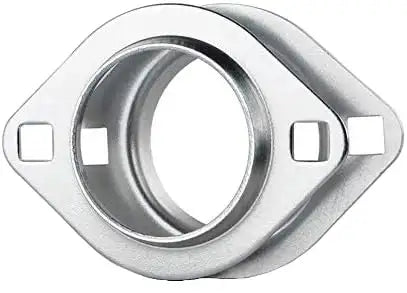

PFL204 Stamped Steel 2-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$7.14
SKU: 5652-PFL204-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PFL204 Stamped Steel 2-Bolt Flange Bearing Housing Features
PFL204 Stamped Steel 2-Bolt Flange Bearing Housing Specifications
PFL204 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 2-bolt flange bearing housing. Our PFL204 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PFL204 flange bearing housing that will impress. Two-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PFL204 housings, contact our customer support team, and we will be happy to assist you!
PFL204 Housing Dimensions
- Housing Part #: PFL204
- Shaft Size: 3/4"
- Dimension (A): 47mm
- Dimension (B): 2-5/8"
- Dimension (C): 3-9/16"
- Dimension (D): 2-13/16"
- Dimension (E): 5/16"
- Dimension (F): 11/32"
- Dimension (H): 2-3/16"
- Dimension (J): 0.083"
- Bolt Size: 5/16"
- Radial Load Rating: 700 LBS
- Fafnir Part #: 47MST
- SKF Part #: FT-47
- NTN Part#: PFL204
- Housing Part #: PFL204
- Shaft Size: 3/4"
- Dimension (A): 47mm
- Dimension (B): 2-5/8"
- Dimension (C): 3-9/16"
- Dimension (D): 2-13/16"
- Dimension (E): 5/16"
- Dimension (F): 11/32"
- Dimension (H): 2-3/16"
- Dimension (J): 0.083"
- Bolt Size: 5/16"
- Radial Load Rating: 700 LBS
- Fafnir Part #: 47MST
- SKF Part #: FT-47
- NTN Part#: PFL204
