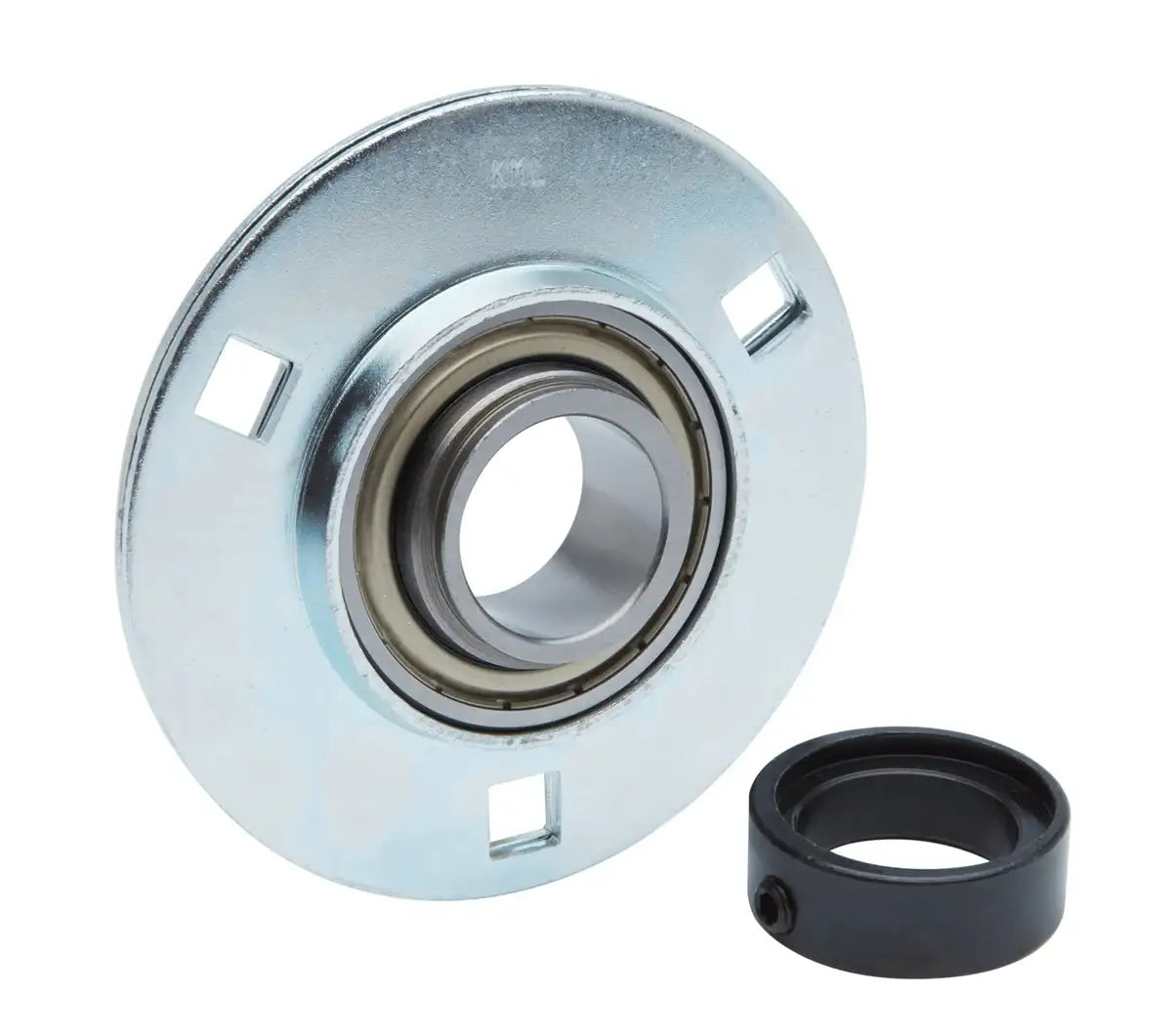

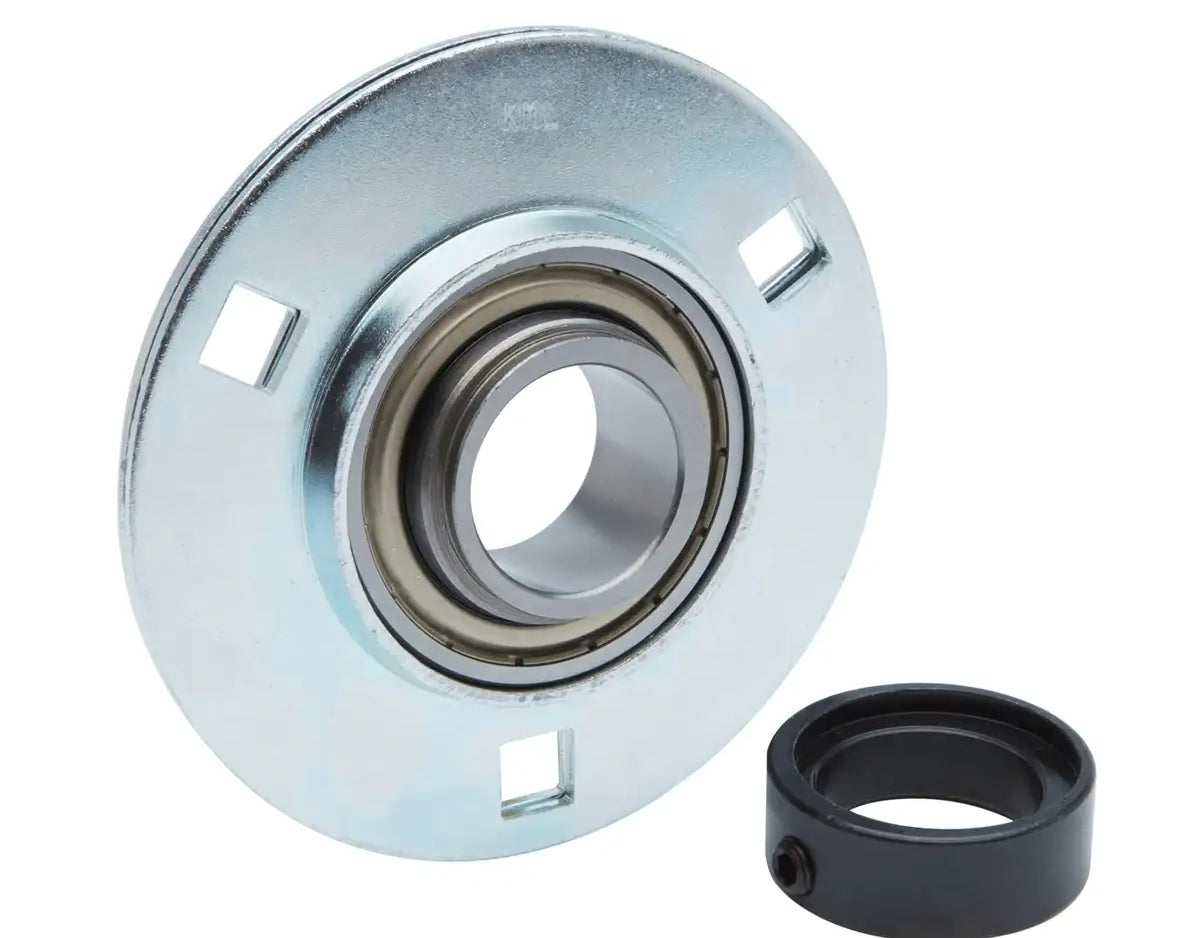

SAPF204 Stamped Steel 3-Bolt Flange Bearing | 20mm Bearing

SAPF204 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 20mm insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF204 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF204 20mm bearing has incredible holding power and stability. Additionally, our SAPF204 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF204 bearing, contact our customer support team, and we will be happy to assist you!

SAPF204 Bearing Dimensions

• Part #: SAPF204
• Bearing ID: 20mm
• Dimension (a): 3-35/64"
• Dimension (e): 2-51/64"
• Dimension (g): 3/32"
• Dimension (c): 5/8"
• Dimension (s): 11/32"
• Dimension (f): 2-7/32"
• Dimension (L): 1.220"
• Dimension (n): 0.276"
• Dimension (W): 1-1/4"
• Bolt Size: 5/16"
• Number of Bolt Holes: 3
• Insert Bearing #: SA204
• Housing #: PF204
• Weight: 0.77 LBS
