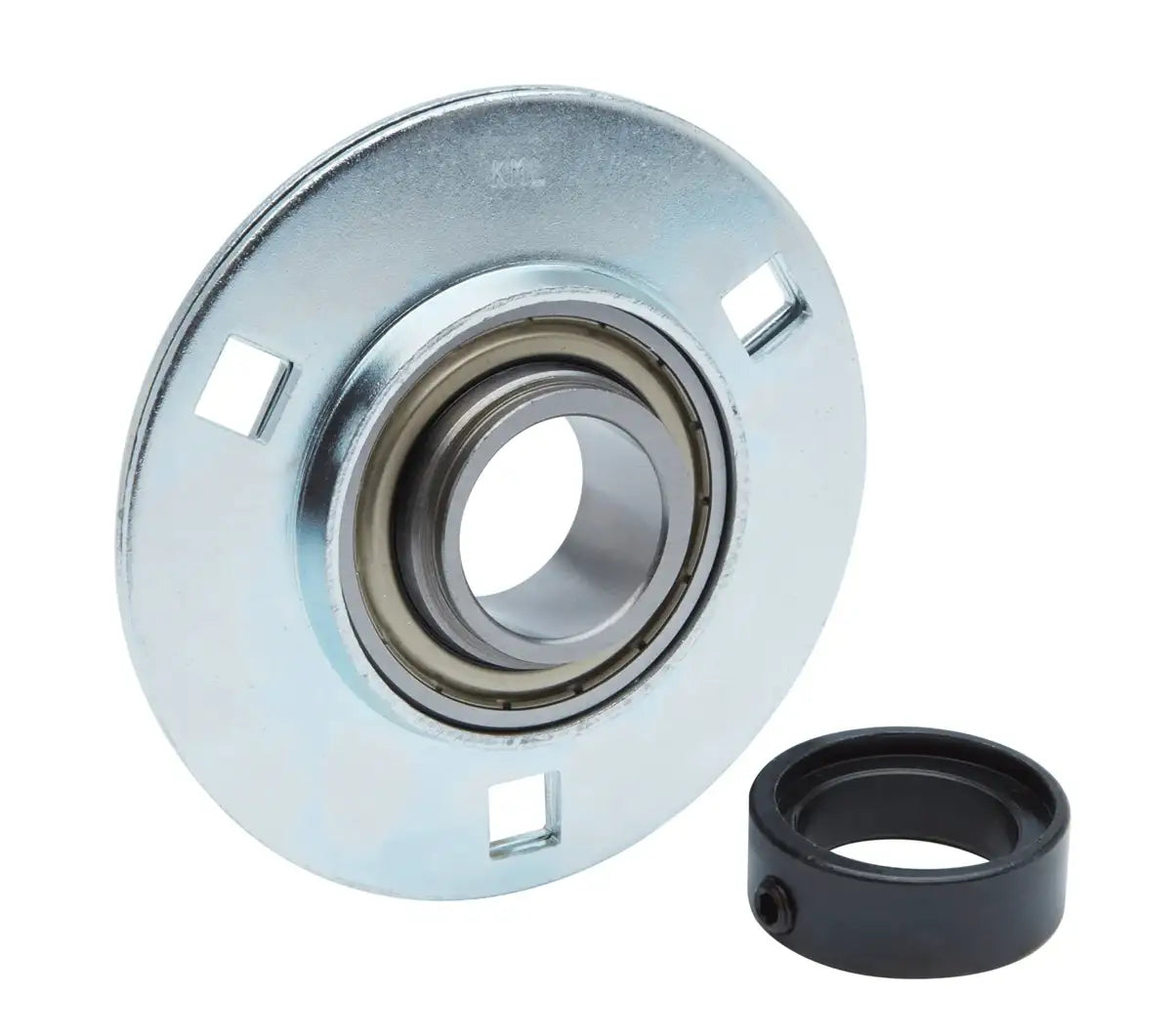

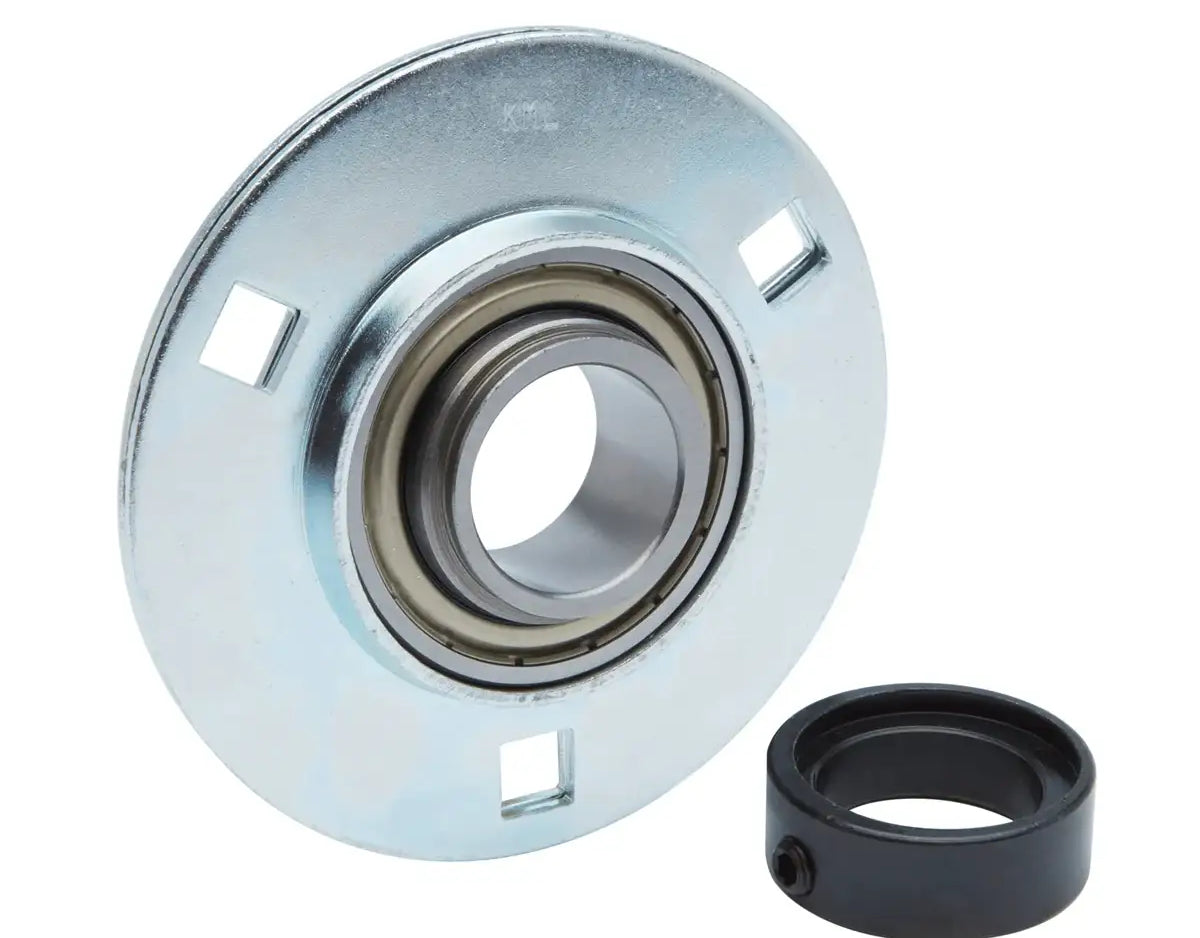

SAPF205-16 Stamped Steel 3-Bolt Flange Bearing | 1" Bearing

SAPF205-16 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF205-16 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF205-16 1" bearing has incredible holding power and stability. Additionally, our SAPF205-16 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF205-16 bearing, contact our customer support team, and we will be happy to assist you!

SAPF205-16 Bearing Dimensions

• Part #: SAPF205-16
• Bearing ID: 1"
• Dimension (a): 3-3/4"
• Dimension (e): 2-63/64"
• Dimension (g): 3/32"
• Dimension (c): 21/32"
• Dimension (s): 11/32"
• Dimension (f): 2-19/32"
• Dimension (L): 1.220"
• Dimension (n): 0.295"
• Dimension (W): 1-1/2"
• Bolt Size: 5/16"
• Number of Bolt Holes: 3
• Insert Bearing #: SA205-16
• Housing #: PF205
• Weight: 0.88 LBS
