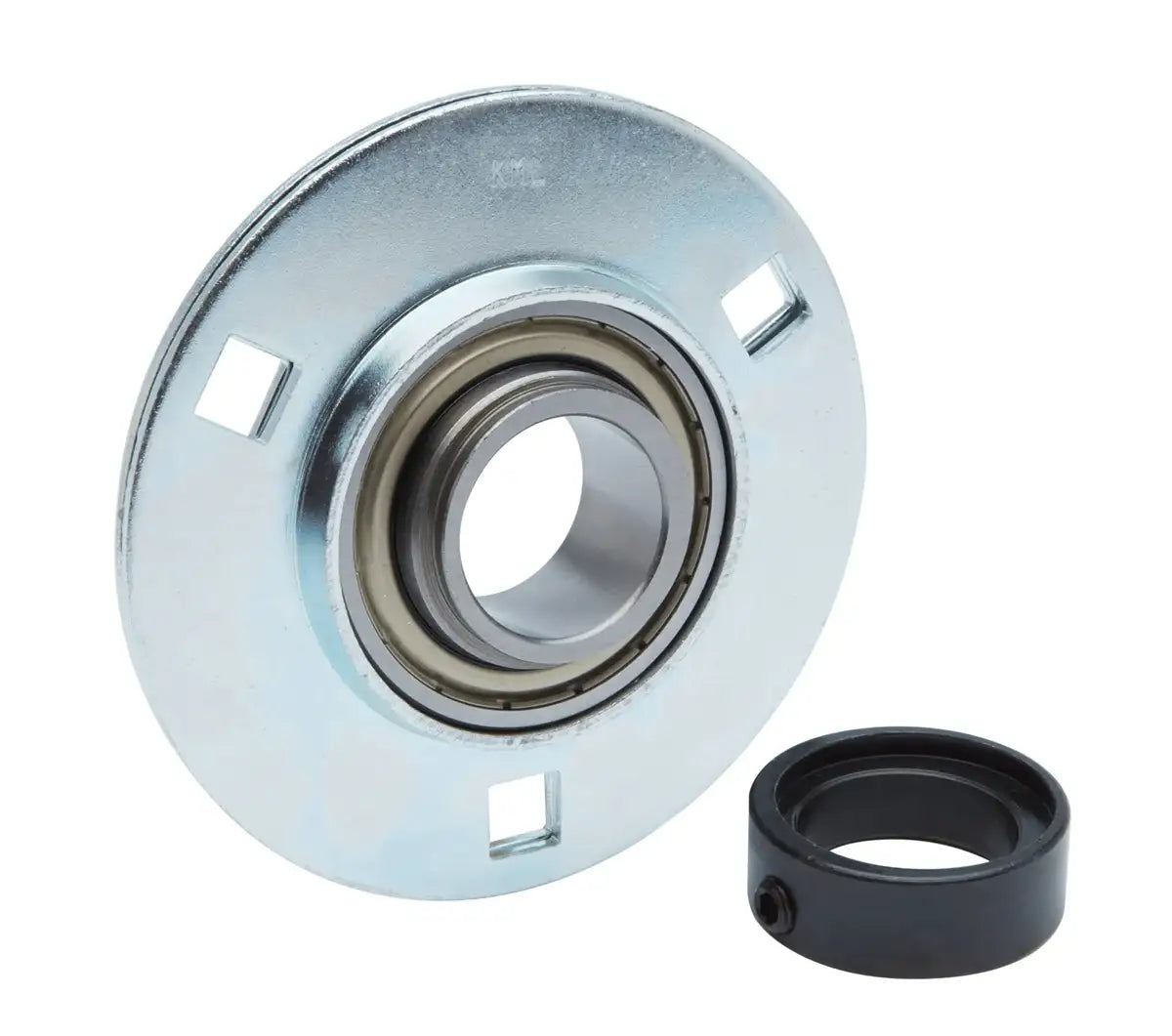

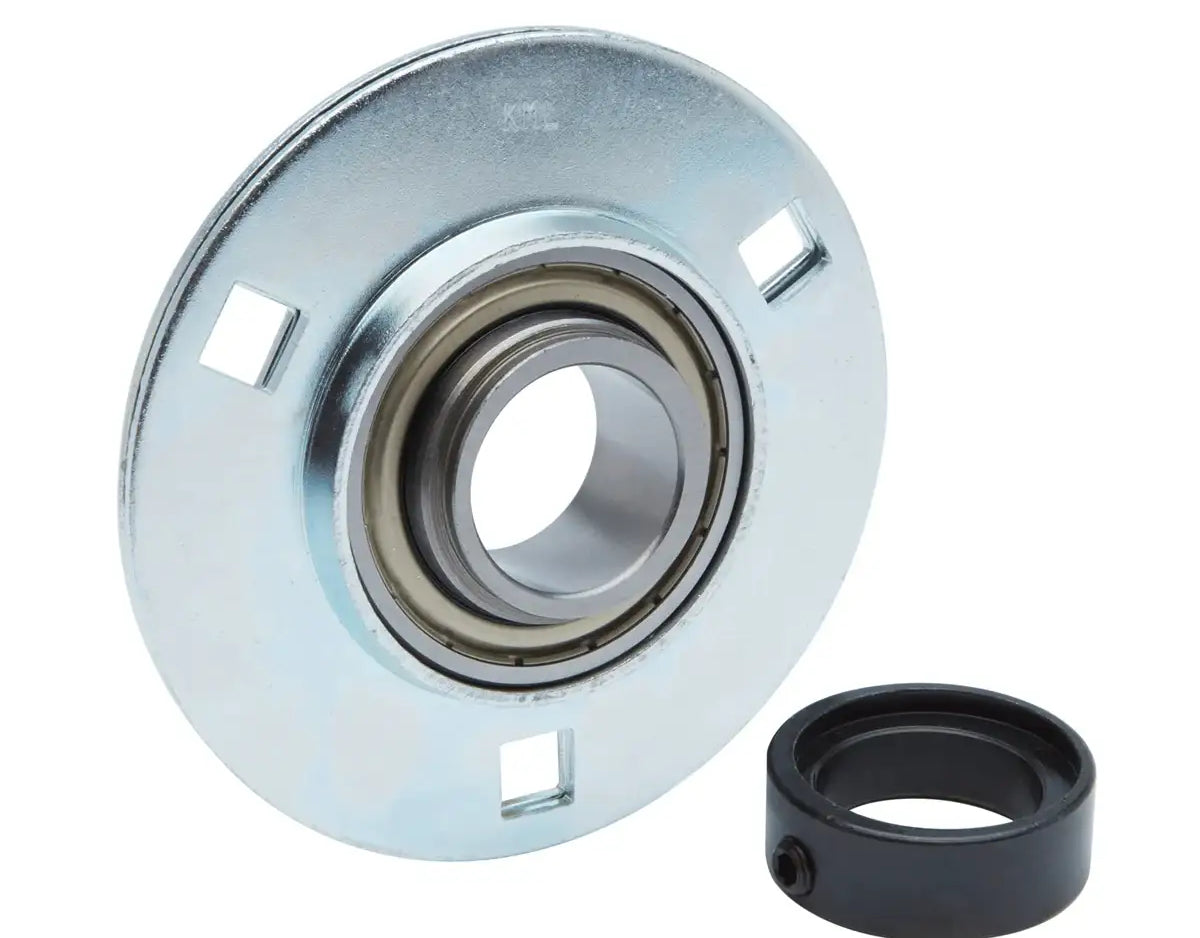

SAPF206-18 Stamped Steel 3-Bolt Flange Bearing | 1-1/8" Bearing
Note:
Custom Cut to Length Chain Also Available
$31.35
SKU: 5652-SAPF206-18-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
SAPF206-18 Stamped Steel 3-Bolt Flange Bearing | 1-1/8" Bearing Features
SAPF206-18 Stamped Steel 3-Bolt Flange Bearing | 1-1/8" Bearing Specifications
SAPF206-18 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-1/8" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF206-18 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF206-18 1-1/8" bearing has incredible holding power and stability. Additionally, our SAPF206-18 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF206-18 bearing, contact our customer support team, and we will be happy to assist you!
SAPF206-18 Bearing Dimensions
- Part #: SAPF206
- Bearing ID: 1-1/8"
- Dimension (a): 4-7/16"
- Dimension (e): 3-35/64"
- Dimension (g): 7/64"
- Dimension (c): 21/32"
- Dimension (s): 13/32"
- Dimension (f): 2-51/64"
- Dimension (L): 1.406"
- Dimension (n): 0.315"
- Dimension (W): 1-3/4"
- Bolt Size: 3/8"
- Number of Bolt Holes: 3
- Insert Bearing #: SA206-18
- Housing #: PF206
- Weight: 1.50 LBS
