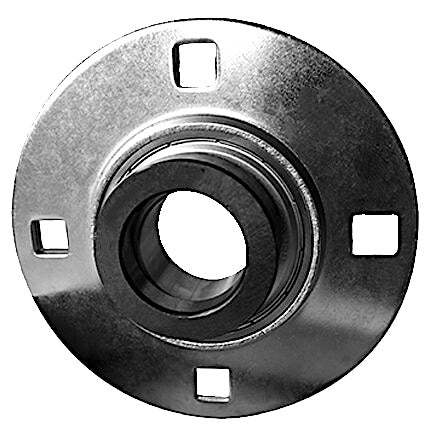

SAPF208G Stamped Steel 4-Bolt Flange Bearing | 40mm Bearing

SAPF208G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 40mm insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF208G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SAPF208G 40mm bearing has incredible holding power and stability. Additionally, our SAPF208G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SAPF208G bearing, contact our customer support team, and we will be happy to assist you!

SAPF208G Bearing Dimensions

• Part #: SAPF208G
• Bearing ID: 40mm
• Dimension (a): 5-13/16"
• Dimension (e): 4-11/16"
• Dimension (g): 9/64"
• Dimension (c): 13/16"
• Dimension (s): 1/2"
• Dimension (f): 3-35/64"
• Dimension (L): 1.720"
• Dimension (n): 0.354"
• Dimension (W): 2-3/8"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SA208

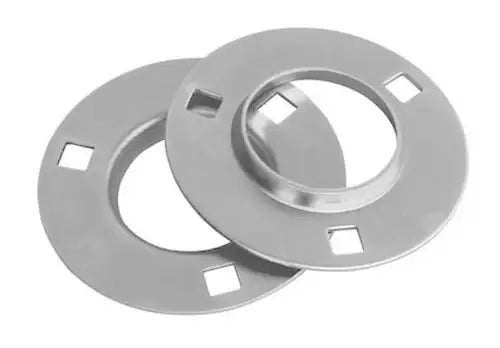

• Housing #: PF208G
• Weight: 2.85 LBS
