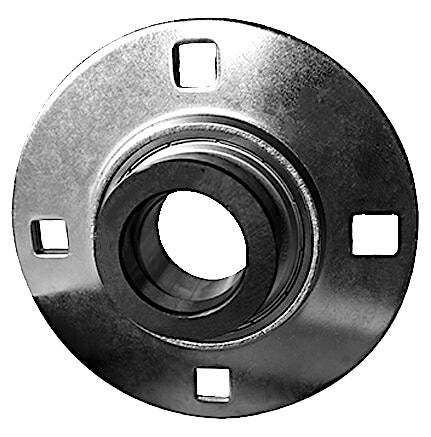

SAPF210-30G Stamped Steel 4-Bolt Flange Bearing | 1-7/8" Bearing

SAPF210-30G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 1-7/8" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF210-30G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SAPF210-30G 1-7/8" bearing has incredible holding power and stability. Additionally, our SAPF210-30G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SAPF210-30G bearing, contact our customer support team, and we will be happy to assist you!

SAPF210-30G Bearing Dimensions

• Part #: SAPF210-30G
• Bearing ID: 1-7/8"
• Dimension (a): 6-3/16"
• Dimension (e): 5"
• Dimension (g): 5/32"
• Dimension (c): 7/8"
• Dimension (s): 1/2"
• Dimension (f): 4-1/64"
• Dimension (L): 1.720"
• Dimension (n): 0.394"
• Dimension (W): 2-3/4"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SA210-30
• Housing #: PF210G
• Weight: 3.50 LBS
